This is the M&TA Realtime page

First web addition: 2/16/2001:
updated to reflect changes to static system: 2/19/2009 (in progress):
Current/Revised Realtime system:
Reason for modifications:
Real time web pages have become flight critical Outages have been suffered due to depencies on Remote software (DS.relase and other disks) and specific hardware subject to failure (remus servers). multimon is also not being run in a remotely accesable form, so situation monitroing is difficult in the middle of the night.

Solution: Assure at least 2 independant pathways with independant data sources, hardware and web servers. Have watcher software installed to

Side issue: 1 account can only run multimon once.

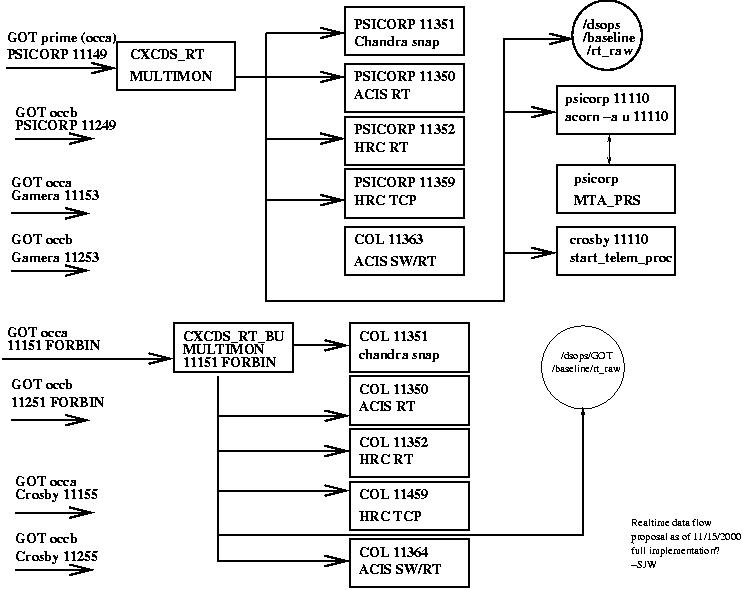

Outline - see figure.

  1. redsitribute psicorp inputs to multiple platforms
  2. Run critical RT-elements on 2 platforms (requires 2 accounts)
  3. enable watcher software to fail over to non-DS.release versions. If DS.release fails and notify responsible operators.
  4. distrubution of data goes to systems on either side of the HEAD/ops LAN (prime=HEAD) to deal with failure of either subsystem. SOT home pages points to functional mirror. Details:
           1- 4 feeds to rhodes (2 RT/ 2 ASVT) need to be disributed among more
            machines.


            Currently (2/16/2001)
            RT	        ASVT/SIM
            PSICORP 11149   PSICORP 11249
            Gamera  11153   Gamera  11253
            FORBIN  11151   FORBIN  11251
            CROSBY	11155   CROSBY  11255

    DS OPS Realtime Guide

            1 account runs on gamera prime (CXCDS_RT)
            	The account runs all the former system run by ascdsops

    multimon_gamera> clients
    No.    Protocol IP Address     Port      Description                   State
    ---    -------- ----------     ----      -----------                   -----
    1      UDP      131.142.52.214  11111     CFA246 (Dong-Woo Kim)         On
    2      UDP      131.142.52.110  11150     Paul's machine nesvig         Off
    3      UDP      131.142.52.102  11150     Mike's machine tribble        Off
    6      UDP      131.142.42.104  11150     Dan's machine cfa259          Off
    7      UDP      131.142.56.241  11149     SOT Lead on colossus          On
    8      UDP      131.142.56.241  11150     ACIS PMON                     On
    9      UDP      131.142.56.241  11151     extra colossus hookup         On
    10     UDP      131.142.56.213  11111     gamera (DSOPS)                On
    11     UDP      131.142.56.241  11363     colossus PGF                  On
    12     UDP      131.142.42.185  11111     Shanil's xcanuck              On
    13     UDP      131.142.56.253  11120     Rhodes MTA                    On
    14     UDP      131.142.56.253  11112     Chandra snapshot              On
    15     UDP      131.142.56.253  11122     Chandra snapshot              Off
    16     UDP      131.142.56.253  11121     Chandra snapshot              On
    17     UDP      131.142.56.253  11350     acisdude-ACIS rhodes          On
    18     UDP      131.142.56.253  11351     rac Snapshot rhodes           On
    19     UDP      131.142.56.253  11352     acisdude-HRC rhodes           On
    20     UDP      131.142.56.174  11112     Ionize home                   On
    21     UDP      131.142.56.213  11100     GAMERA acorn with alarms      On
    22     UDP      131.142.42.185  11113     xcanuck redundant             On
    23     UDP      131.142.56.161  12001     ringo L0                      On
    24     UDP      131.142.56.161  12002     ringo L0                      On
    25     UDP      131.142.56.161  12003     ringo L0                      On
    26     UDP      131.142.56.161  12004     ringo L0                      On
    27     UDP      131.142.56.161  12005     ringo L0                      On
    28     UDP      131.142.56.161  12006     ringo L0                      On
    29     UDP      131.142.56.161  12007     ringo L0                      On
    30     UDP      131.142.56.161  12008     ringo L0                      On
    31     UDP      131.142.56.232  11111     crosby acorn                  On
    32     UDP      131.142.184.154 15120     HRC Jon C.                    On
    33     UDP      131.142.83.51   15202     Jon HRC11                     Off
    34     UDP      131.142.56.174  11147     ionize                        On
    35     UDP      131.142.56.232  14567     On crosby craig               On
    36     UDP      131.142.56.80   13001     watchdog on forbin            On
    37     UDP      131.142.88.11   15201     HRC11                         On
    36     UDP      131.142.52.106  11150     Tom's machine baffin          On
    37     UDP      131.142.56.223  11150     Tom's machine lala            On


            1 account runs on forbin prime (CXCDS_RT_BU)
            	This account runs redundant and non critical systems:

    multimon_cxcds_BU> clients
    No.    Protocol IP Address     Port      Description                   State
    ---    -------- ----------     ----      -----------                   -----
    1      UDP      131.142.56.241 11351     Col. Chandra Snap BU          On
    2      UDP      131.142.56.241 11350     Col. ACIS/HW BU               On
    3      UDP      131.142.56.241 11352     Col. HRC RT BU                On
    4      UDP      131.142.56.241 11364     Col. ACIS/SW BU               On
    5      UDP      131.142.56.241 11111     Colossus Reserve              On
    6      UDP      131.142.56.241 11363     ACIS RT/SW (Prime)            Off
    7      UDP      131.142.42.185 11112     xcanuck (redundant)           On
    8      UDP      131.142.56.241 11365     ACIS RT/SW (BU)               On
    9      UDP      131.142.56.174 11347     Ionize                        On
    10     UDP      131.142.56.80  11110     Forbin test                   On
    11     UDP      131.142.56.241 11125     Colossus MCD test             On
    12     UDP      131.142.56.253 11113     rhodes mta snapshot           On
    13     UDP      131.142.83.51  15201     Jon HRC11                     On
    14     UDP      131.142.184.154 15199    HRC Jon C.                    On
    15     UDP      131.142.56.102 11111     maximus acorn                 On
    16     UDP      131.142.56.232 13002     watchdog on crosby            On
    17     UDP      131.142.184.13 14000     wyle1 mcd                     Off
    18     UDP      131.142.184.13 14002     wyle2 mcd                     Off
    19     UDP      131.142.56.101 11111     baggins                       On
    20     UDP      131.142.56.80  13002     Forbin Watchdog               On


    2- Run critical RT-elements on 2 platforms (requires 2 accounts)
    	Created cxcds_rt & cxcds_rt_bu to handle RT ops.
    	New procedures in place to run multimon remotely


    3- enable watcher software to fail over to non-DS.release
    	versions. If DS.release fails and notify responsible
    	operators.

    	This was initially meant to be the run_task.pl software
    	in /home/cxcds_rt(_bu)/MAINTAINANCE.  This does run
    	on cxcds_rt_bu.  Points to local versions of acorn and
    	multimon ~/MULTIMON ~/ACORN for autorestart, not for
    	primary use.

    	ISSUE:Unclear on watcher status on cxcds_rt
    	ISSUE:As run_task.pl is requires the hardware to be up.  We
    		should also have watcher/notifier software to assue
    		the psicorp and forbin are up (checks once per 5 minutes).

    4- distrubution of data goes to systems on either side of the
    	HEAD/ops LAN (prime=HEAD) to deal with failure of
    	either subsystem.  SOT home pages points to functional mirror.


    critical Web pages
    on head LAN
    Chandra Snapshot             GOT/CXCconduit        proc. & data store
         State of Chandra (SOH)  gamera------------------->rhodes
         ACIS - Hardware         gamera------------------->rhodes
         ACIS -Software          gamera------------------->colossus
         HRC		     gamera------------------->rhodes
         ACE                                               rhodes
         Other radiation information  rhodes+remote hosts

    *this has been identified as a weak link and is being picked up as
    part of a general critical software condensation project initiated by
    the flight director.


    on ops LAN
    REALTIME DATA

         Chandra Snapshot		Forbin -----------------> colossus
         State of Chandra(SOH)      Forbin -----------------> colossus
         ACIS (HW)                  Forbin -----------------> colossus
         HRC                        Forbin -----------------> colossus
         ACE                                                  colossus
         GOES 10			                          colossus
