Simulating X-ray Spectral Data (PHA): the fake_pha command

Quick Start to Simulating Data

All that is required to simulate a 1D PHA data set in Sherpa is the following:

• a source model expression defined with set_source
• a .rsp or ARF & RMF instrument response files
• exposure time for the simulation in seconds

fake_pha will do the rest:

unix% ciao

ciao% sherpa

# Search available Sherpa models, define a source model expression and assign it an ID such as "1".

sherpa> list_models()

['atten',
 'bbody',
 'bbodyfreq',
 'beta1d',
 'beta2d',
  ...
 'xszvarabs',
 'xszvfeabs',
 'xszvphabs',
 'xszwabs',
 'xszwndabs',
 'xszxipcf']


sherpa> set_source(1, "xsphabs.abs1*xspowerlaw.p1")


# Set initial model parameter values.

sherpa> set_par(abs1.nH, val=0.07, frozen=True)
sherpa> p1.PhoIndex = 0.8


# Fake a PHA data set over the grid defined by the input responses.

sherpa> fake_pha(1, "source.arf", "source.rmf", 50000)

# or

sherpa> fake_pha(1, None, "source.rsp", 50000)


# Filter the simulated data on energy or wavelength and plot.

sherpa> notice(0.3, 7.)
sherpa> plot_data()


# Return information on the faked data set and associated responses.

sherpa> show_data(1)
Data Set: 1
Filter: 0.2993-7.0007 Energy (keV)
Noticed Channels: 21-480
name           = faked
channel        = Float64[1024]
counts         = Float64[1024]
staterror      = None
syserror       = None
bin_lo         = None
bin_hi         = None
grouping       = None
quality        = None
exposure       = 50000
backscal       = None
areascal       = None
grouped        = False
subtracted     = False
units          = energy
rate           = True
plot_fac       = 0
response_ids   = [1]
background_ids = []

RMF Data Set: 1:1
name     = source.rmf
detchans = 1024
energ_lo = Float64[1024]
energ_hi = Float64[1024]
n_grp    = UInt64[1024]
f_chan   = UInt32[1504]
n_chan   = UInt32[1504]
matrix   = Float64[387227]
offset   = 1
e_min    = Float64[1024]
e_max    = Float64[1024]

ARF Data Set: 1:1
name     = source.arf
energ_lo = Float64[1024]
energ_hi = Float64[1024]
specresp = Float64[1024]
bin_lo   = None
bin_hi   = None
exposure = 8034.23745459


# Save simulated data.

# NOTE: the following two 'get_data' lines are necessary to
# work around a CIAO 4.4 bug with the save_pha() function; normally, one would
# just need to use save_pha() to write a simulated PHA data set to file.

sherpa> get_data(1).header = {}               # Make header an empty dictionary
sherpa> get_data(1).name = "simulation1.pha"  # Update name for save_pha

sherpa> save_pha(1, "simulation1.pha")

This represents the quickest and simplest way to simulate a PHA data set in Sherpa: start CIAO and Sherpa; define a source model expression in Sherpa and assign it a data set ID such as "1" or "sim"; set some initial model parameter values; and then run fake_pha with your chosen exposure time and instrument response file(s).

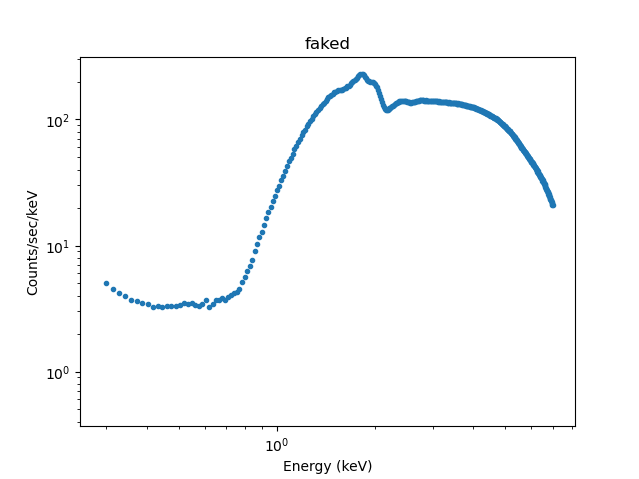

Figure 1: 1D PHA Spectrum Simulated with Sherpa

Figure 1: 1D PHA Spectrum Simulated with Sherpa

1D PHA data set simulated with the Sherpa fake_pha command, with an absorbed power law model, 50ks exposure time, and Chandra calibration response files as input.

Read on to learn the details of all options available for faking PHA data in Sherpa, with step-by-step instructions; or, skip to one of the more-succint simulation threads tailored to a specific type of analysis:

• Simulating Chandra ACIS-S Spectra with Sherpa
• Simulating Chandra ACIS-S LETG Spectra with Sherpa
• Simulating IXO/CAT Spectra with Sherpa
• Creating an Input Spectrum for Running MARX Simulations
• Simulating NuSTAR X-Ray Spectra with Sherpa

Step-by-Step: Getting started

Please follow the "" thread.

Introduction to fake_pha

The fake_pha command creates a simulated 1-D PHA data set using a previously defined source model expression and instrument response; Poisson deviates are then added to the modeled data. If a background file is supplied via the 'bkg' argument of fake_pha, then the backscale correction is used, and background is added to the simulated data before Poisson noise. Note that while it is not necessary to supply a PHA data set to the 'id' argument of fake_pha - e.g., a real data set loaded into the session or an empty one created with the dataspace1d command - the 'bkg' argument does require such a PHA data set. All that is necessary for the id argument is a source model ID, i.e. the ID defined with the set_source command in defining the source model expression for the simuation (demonstrated in the section Defining a Source Model Expression without a Data Set).

All Sherpa models can be used in the simulations, as well as models created and implemented by the user. Individual models can be combined into composite models, and parameters can be linked across the model components.

Both source models and instrument responses must be predefined. It is possible to use both a redistribution matrix file (RMF) and an ancillary response file (ARF) with fake_pha, or just an RMF. The 'rmf' argument accepts both .rmf and .rsp files.

There are several steps involved in creating simulations:

1. Loading an appropriate ancillary response file and/or redistribution matrix file.
2. Defining a source model expression.
3. (optional) Defining a background by reading a background data file or specifying a background model.
4. Running the simulation using fake_pha.
5. Defining the model normalization for the simulated data, if desired.
6. Writing the simulated data to output files.

This thread illustrates each of these steps with an example. It also illustrates use of the fake_pha command when a source PHA data file has been previously read into the session, as well as how to plot and fit simulated data. The thread concludes with an example script for simulating multiple data sets within a single Sherpa session, as well as one for simulating hot plasma emission.

NOTE, if you already have a source PHA data set loaded into the session: Sherpa automatically loads instrument response and background data files recorded in the header of a PHA data set when the PHA file is loaded using load_pha or load_data. If this is the case, then you may proceed to Using fake_pha with a PHA File. If there is no source PHA data set available, then proceed to the next section of this thread.

Defining a Source Model Expression for the Simulation

The source model expression is defined in the standard way with the set_source command. Before defining the model, one may use the dataspace1d command to create an empty PHA data set with which to associate the model - which will eventually store the faked data values - but this step is no longer necessary on account of enhancements to the fake_pha functionality. One may simply use the set_source command to assign a model to an ID, which will later be interpeted by fake_pha as the ID of the simulated data set (i.e, the ID defined with set_source should be supplied as the fake_pha 'id' value, at which point a data set will be created and associated with that ID).

sherpa> set_source(1, "powlaw1d.modelA")
sherpa> modelA.gamma=2

In this example, we assume a 1-D power-law model for the source.

sherpa> print(get_source())
powlaw1d.modelA
   Param        Type          Value          Min          Max      Units
   -----        ----          -----          ---          ---      -----
   modelA.gamma thawed            2          -10           10
   modelA.ref   frozen            1 -3.40282e+38  3.40282e+38
   modelA.ampl  thawed            1            0  3.40282e+38

Note that the commands show_source and show_model will not return the model assigned to data id=1 until it is associated with a data set.

Defining an Instrument Response

The default instrument response files for 1-D simulations of Chandra data include the redistribution matrix (RMF) and the ancillary response (ARF) files in standard FITS format. These files can be created with the mkrmf and mkarf tools, or with a script as described in the thread Using specextract to Extract ACIS Spectra and Response Files. Furthermore, calibration files for simulations can be downloaded from the Chandra Proposal Planning page of the CalDB (Calibration Database) website.

The ARF and RMF files may be loaded into the Sherpa session via the unpack_arf/unpack_rmf and load_arf/load_rmf commands. Here, we choose to use the unpack commands so that the response data can be stored in the variables 'arf1' and 'rmf1':

sherpa> arf1=unpack_arf("dataA_arf.fits")
sherpa> print(arf1)
header   =
 ARFVERSN      = 1992a
 HDUCLAS1      = RESPONSE
 HDUCLAS2      = SPECRESP
 HDUCLASS      = OGIP
 HDUVERS1      = 1.0.0
 HDUVERS2      = 1.1.0
 INSTRUME      = SIS0
 RESPFILE      = s0_mar24.rmf
 TELESCOP      = ASCA
 WAOAA         = 5.14039
name     = dataA_arf.fits
energ_lo = Float64[1180]
energ_hi = Float64[1180]
specresp = Float64[1180]
bin_lo   = None
bin_hi   = None
exposure = None


sherpa> rmf1=unpack_rmf("dataA_rmf.fits")
sherpa> print(rmf1)
header   =
 CBD10001      = CHAN(1- 512)
 CBD20001      = ENER(0.2-12.0)keV
 CBD30001      = GRADE("0234" )
 CBD40001      = RAWX( 77- 497)
 CBD50001      = RAWY( 64- 486)
 CCLS0001      = CPF
 CCNM0001      = EBOUNDS
 CDES0001      = SISRMGv1.00:1180x512 S0C1 G"0234"  V112 P40 E1.8
 CDTP0001      = DATA
 CHANTYPE      = PI
 CVSD0001      = 20/02/93
 CVST0001      = 11/11/11
 HDUCLAS1      = RESPONSE
 HDUCLAS2      = EBOUNDS
 HDUCLAS3      = DETECTOR
 HDUCLASS      = OGIP
 HDUVERS1      = 1.0.0
 HDUVERS2      = 1.1.0
 INSTRUME      = SIS0
 LO_THRES      = 1e-07
 RMFVERSN      = 1992a
 SMOOTHED      = -1
 TELESCOP      = ASCA
name     = dataA_rmf.fits
detchans = 512
energ_lo = Float64[1180]
energ_hi = Float64[1180]
n_grp    = Int16[1180]
f_chan   = UInt32[1189]
n_chan   = UInt32[1189]
matrix   = Float64[260775]
offset   = 0
e_min    = Float64[512]
e_max    = Float64[512]

Defining a Background (optional)

Background data and/or models are treated as follows with fake_pha:

1. If a background model is defined, it is evaluated on the source data grid, and the resulting background amplitudes are added to the source amplitudes (taking into account differences in exposure time and backscale). Faked data are then sampled given the sum. If background data exist, they are not altered. If the source data set was background-subtracted prior to the command fake_pha being issued, it will not be background-subtracted afterwards.

2. If no background model is defined, and the data are background-subtracted, then the source model is evaluated directly, and the new, faked data are background-subtracted. Note that subsequently issuing an unsubtract command is unwise, because the unsubtracted data will not be integer counts data.

3. If no background model is defined, and the data are not background-subtracted, then the source model is evaluated directly, and the (properly scaled) background data are added to the faked data.

sherpa> bkg1=unpack_pha("dataA_bkg.pha")
sherpa> print(bkg1)
header         =
 CHANTYPE      = PI
 CMPMODE       = BRIGHT2LINEAR
 CORRSCAL      = 1.0
 CREATOR       = extractor12
 DATAMODE      = BRIGHT
 DATE          = 08/10/96
 DATE-END      = 01/01/93
 DATE-OBS      = 01/01/93
 DEC_PNT       = 0.0
 DETCHANS      = 512
 EQUINOX       = 2000.0
 FILIN001      = s0bgd_06i.evt
 GROUPING      = 0
 HDUCLAS1      = SPECTRUM
 HDUCLAS2      =
 HDUCLAS3      = COUNT
 HDUCLASS      = OGIP
 HDUVERS1      = 1.1.0
 INSTRUME      = SIS0
 OBJECT        = SIS BGD
 ORIGIN        = NASA/GSFC
 PA_PNT        = 269.999664
 PHAVERSN      = 1992a
 POISSERR      = True
 RADECSYS      = FK4
 RA_PNT        = 0.0
 STAT_ERR      = 0
 SYS_ERR       = 0
 TELESCOP      = ASCA
 TIME-END      = 00:34:07
 TIME-OBS      = 00:00:00
 TOTCTS        = 2220
 USER          =
name           = dataA_bkg.pha
channel        = Float64[512]
counts         = Float64[512]
staterror      = None
syserror       = None
bin_lo         = None
bin_hi         = None
grouping       = None
quality        = Int16[512]
exposure       = 108675.66732
backscal       = 0.044189453125
areascal       = 1.0
grouped        = False
subtracted     = False
units          = channel
rate           = True
plot_fac       = 0
response_ids   = []
background_ids = []

sherpa> set_source("bkg1",polynom1d.bkgA+gauss1d.bkgB)
sherpa> bkgA.c0=6.4e-5
sherpa> bkgA.c1=2.3e-5
sherpa> bkgA.c3=1.4e-05
sherpa> bkgB.fwhm=5.6254
sherpa> bkgB.pos=0.057
sherpa> bkgB.ampl=0.003
sherpa> print(get_source("bkg1"))
(polynom1d.bkgA + gauss1d.bkgB)
   Param        Type          Value          Min          Max      Units
   -----        ----          -----          ---          ---      -----
   bkgA.c0      thawed      6.4e-05 -3.40282e+38  3.40282e+38
   bkgA.c1      frozen      2.3e-05 -3.40282e+38  3.40282e+38
   bkgA.c2      frozen            0 -3.40282e+38  3.40282e+38
   bkgA.c3      frozen      1.4e-05 -3.40282e+38  3.40282e+38
   bkgA.c4      frozen            0 -3.40282e+38  3.40282e+38
   bkgA.c5      frozen            0 -3.40282e+38  3.40282e+38
   bkgA.c6      frozen            0 -3.40282e+38  3.40282e+38
   bkgA.c7      frozen            0 -3.40282e+38  3.40282e+38
   bkgA.c8      frozen            0 -3.40282e+38  3.40282e+38
   bkgA.offset  frozen            0 -3.40282e+38  3.40282e+38
   bkgB.fwhm    thawed       5.6254  1.17549e-38  3.40282e+38
   bkgB.pos     thawed        0.057 -3.40282e+38  3.40282e+38
   bkgB.ampl    thawed        0.003 -3.40282e+38  3.40282e+38

Running the Simulation Using fake_pha

Simulating a spectrum means taking the defined model expression, folding it through the instrument response, and applying Poisson noise to the counts predicted by the model. The simulation is run with fake_pha, which has four required arguments: data set ID, ARF, RMF, and exposure time. To include the background component in the simulation and set the backscale and areascale values to those associated with the backround PHA data set, we also use the optional 'bkg', 'backscal', and 'areascal' arguments. We choose to simulate a spectrum resulting from a 33 ks exposure.

sherpa> fake_pha(1, arf=arf1, rmf=rmf1, exposure=33483.2, bkg=bkg1, backscal=bkg1.backscal, areascal=bkg1.areascal)

This command associates data set ID "1" with a simulated, ungrouped source data set based on the assumed exposure time, instrument response, source model expression, and background data; Poisson noise is added to the modeled data. If an ARF is not to be included in the instrument response for the simulation, the 'arf' argument may be set to "None."

Note that as of Sherpa in CIAO 4.2, the 'arf' and 'rmf' arguments of the fake_pha command can accept filenames directly; e.g., we could have done the following:

sherpa> fake_pha(1, arf="dataA_arf.fits", rmf="dataA_rmf.fits", exposure=33483.2, bkg=bkg1, backscal=bkg1.backscal, areascal=bkg1.areascal)

Furthermore, had we decided to load the ARF and RMF into the Sherpa session in association with a data set using the load_arf and load_rmf commands (or load_pha, as shown in the section Using fake_pha with a PHA File), then we could have set the 'arf' and 'rmf' arguments using a third option, shown below.

sherpa> fake_pha(1, arf=get_arf(), rmf=get_rmf(), exposure=33483.2, bkg=bkg1, backscal=bkg1.backscal, areascal=bkg1.areascal)

For detailed information on the available options for setting the 'arf' and 'rmf' arguments of fake_pha, refer to the fake_pha ahelp file.

We may inspect some basic properties of the new data set with the show_data, get_counts, and calc_data_sum commands:

sherpa> show_data(1)
Data Set: 1
Filter: 0.0276-14.6640 Energy (keV)
Noticed Channels: 1-512
header         = None
name           = faked
channel        = Int32[512]
counts         = Float64[512]
staterror      = None
syserror       = None
bin_lo         = None
bin_hi         = None
grouping       = None
quality        = None
exposure       = 33483.2
backscal       = 0.044189453125
areascal       = 1.0
grouped        = False
subtracted     = False
units          = energy
rate           = True
plot_fac       = 0
response_ids   = [1]
background_ids = [1]

RMF Data Set: 1:1
header   =
{header information omitted for brevity}
name     = dataA_rmf.fits
detchans = 512
energ_lo = Float64[1180]
energ_hi = Float64[1180]
n_grp    = Int16[1180]
f_chan   = UInt32[1189]
n_chan   = UInt32[1189]
matrix   = Float64[260775]
offset   = 0
e_min    = Float64[512]
e_max    = Float64[512]

ARF Data Set: 1:1
header   =
{header information omitted for brevity}
name     = dataA_arf.fits
energ_lo = Float64[1180]
energ_hi = Float64[1180]
specresp = Float64[1180]
bin_lo   = None
bin_hi   = None
exposure = None

sherpa> sum(get_counts(1))
           4915651.0
sherpa> calc_data_sum(id=1)
           4915651.0

The latter two commands are equivalent, giving the total number of counts simulated in the data set. get_counts provides an array of the unfiltered counts per channel, and the sum function adds together each element of the array. The calc_data_sum function sums up the counts per array element for data set 1, but includes an option for filtering, which in this case is energy in units of keV. By default, calc_data_sum introduces an energy filter that excludes everything <1.0 keV (i.e. lo=1.0,hi=None) , but to include all counts without filtering, we choose (lo=None,hi=None).

Similarly, we may determine the count rate of this data set in units of counts/second by doing the following:

sherpa> calc_data_sum(id=1)/get_exposure(1)
         146.80057461652413

The simulated data set is not saved to disk until the command write_pha is given (see the section Writing The Simulated Data To Output Files).

Defining the Model Normalization for the Simulated Data

In order to use simulated data for scientific analysis, the data should be re-normalized to match the flux (or total counts) of the observed source. If the flux of the simulated data is known, the parameter values of the model used to create the simulated data can easily be converted to the appropriate values. This requires first simulating the data with the default model parameters, calculating the resulting simulated flux, and then rescaling the model parameters appropriately. Then, the simulation is run again with the updated model.

Assuming that we have just simulated data using default model parameters in the source model expression, with modelA.ampl=1, we calculate the flux accordingly:

sherpa> reset(modelA)

sherpa> fake_pha(1, arf=arf1, rmf=rmf1, exposure=33483.2, bkg=bkg1, backscal=bkg1.backscal, areascal=bkg1.areascal)

sherpa> calc_energy_flux(lo=2.,hi=10.)
            2.5706384381817505e-09

This provides the unconvolved energy flux of the model, between 2.0-10.0 keV in units of ergs cm^-2 s^-1.

To find the normalization, we divide a given true source flux of 1.0e-13 ergs cm^-2 s^-1, by the calculated flux for the above default source model (2.5706384381817505e-09); the resulting value will replace the current normalization (modelA.ampl) value of 1 photon keV^-1 cm^-2 s^-1:

sherpa> 1.0e-13/calc_energy_flux(lo=2.,hi=10.)
            3.8900842107819502e-05

The normalization of the source model may be adjusted as follows:

sherpa> modelA.ampl=1.e-13/calc_energy_flux(lo=2.0,hi=10.0)

and fake_pha is run again with the updated source model:

sherpa> fake_pha(1, arf=arf1, rmf=rmf1, exposure=33483.2, bkg=bkg1, backscal=bkg1.backscal, areascal=bkg1.areascal)

sherpa> calc_photon_flux(lo=2.,hi=10.)
            1.5463634382489872e-05

sherpa> calc_energy_flux(lo=2.,hi=10.)
            1.0000000000000012e-13

In addition to the energy flux, the photon flux between 2.0-10.0 keV (in units of photons cm^-2 s^-1) is also available, via the calc_photon_flux command.

If the count rate of the source in a given instrument is known in advance (e.g. it can be obtained from PIMMS, or from previous observations), then a simple scaling can be used to adjust the normalization of the source model. For example, say the known count rate is 0.4 cts/sec. From the first fake_pha run (or a repeat run, with modelA.ampl returned to 1.0), we note the non-normalized count rate:

sherpa> modelA.ampl=1.0

sherpa> fake_pha(1. arf=arf1, rmf=rmf1, exposure=33483.2, bkg=bkg1, backscal=bkg1.backscal, areascal=bkg1.areascal)
sherpa> rate=sum(get_counts(1))/get_exposure(1)

sherpa> print rate
146.82631887

sherpa> modelA.ampl=0.4/rate

sherpa> fake_pha(1,arf=arf1,rmf=rmf1,exposure=get_exposure(1),grouped=False,bkg=get_bkg(1))

sherpa> calc_data_sum(1)
            13521.0

sherpa> calc_data_sum(id=1)/get_exposure(1)
            0.40381445023175805

The data set could then be normalized by scaling the model amplitude with this non-normalized count rate (146.8 cts/sec); this would be achieved by setting the model amplitude value equal to the known count rate divided by the non-normalized count rate.

Writing the Simulated Data to Output Files

The simulated data are not automatically saved to disk. The user may write the data as a PHA file where the PHA header will contain exposure time and backscale values, as well as paths to the RMF, ARF, and background files.

This is done with the save_pha command:

sherpa> save_pha(1,"dataA_sim1.pha")

This creates a PHA file with columns of channel and counts. This file may then be grouped using dmgroup if necessary.

There is also the option to save the data to a FITS or ASCII table file with the save_arrays command:

sherpa> save_arrays ("dataA_sim1.fits", [get_model_plot(1).xlo, get_model_plot(1).y], ascii=False)

ssherpa> save_arrays ("dataA_sim1.txt", [get_model_plot(1).xlo, get_model_plot(1).y], ascii=True)

Using fake_pha with a PHA File

If the user has previously read data from a PHA file:

• An instrument response may have been automatically loaded if the response files are properly referenced in the header of the data file.
• If the data file's backfile keyword supplies a background file, then it will be used in the simulations.
• Since input PHA files also usually contain the exposure time and backscale keywords pertinent to an observation, this information can be easily called on, especially useful for scripting.
• The input data set will be overwritten by the simulated data set created by fake_pha.

For example, erase all current Sherpa settings with the clean command (or by quitting the session and starting a new one), and then input a PHA data file:

sherpa> clean()
sherpa> show_all()

sherpa> load_pha("dataA.pha")
systematic errors were found in file 'dataA.pha'
but not used; to use them, re-read with use_errors=True
read ARF file dataA_arf.fits
read RMF file dataA_rmf.fits
read background file dataA_bkg.pha

sherpa> get_exposure(1)
            33483.25
sherpa> get_backscal(1)
            0.044189453125

Loading this PHA data file resulted in an instrument response being automatically defined (using RMF and ARF files), and a background data file being automatically input. Furthermore, from the get_exposure and get_backscal commands, we see that the exposure time and backscale are readily accessed.

That is, input of this PHA data file has automatically completed two steps involved in creating simulations:

• Defining an instrument response using a redistribution matrix file and an ancillary response file.
• Reading a background data file.

The remaining steps are:

• Defining a source model expression.
• Running the simulation using fake_pha.
• Defining the model normalization for the simulated data, if desired.
• Writing the simulated data to output files.

The following commands complete the remaining steps listed above:

sherpa> set_source(powlaw1d.modelA)
sherpa> modelA.gamma=2

sherpa> fake_pha(1,arf=get_arf(),rmf=get_rmf(),exposure=get_exposure(),bkg=get_bkg())

sherpa> calc_data_sum(id=1)
            4920909.0

sherpa> modelA.ampl=0.4/(calc_data_sum(id=1)/get_exposure(1))

sherpa> fake_pha(1,arf=get_arf(1),rmf=get_rmf(1),exposure=get_exposure(1),bkg=get_bkg(1))
sherpa> calc_data_sum(id=1)
           13488.0

Note that the fake_pha command overwrites the input data set with the simulated data, and we have futher normalized the simulated data set.

The results may be written to a PHA file:

sherpa> save_pha(1,"dataA_sim2.pha")

Plotting and Fitting Simulated Data

The simulated data set may be plotted as any other data set in Sherpa:

sherpa> plot_data()

Figure 2 shows the resulting plot.

Figure 2: The simulated data set

Figure 2: The simulated data set

Plot showing the data set simulated with the fake_pha command.

The simulated data set may also be filtered and fit as any other data set in Sherpa. For example, we can filter the the simulated data set to include only data between 0.5 and 8.0 keV:

sherpa> notice(0.5,8)
sherpa> plot_data()

Figure 3 shows the resulting plot.

Figure 3: Energy range to be fit

Figure 3: Energy range to be fit

The simulated data filtered on the 0.5 - 8.0 keV energy range.

Then, we fit the simulated data set using the same source model expression that was used to create it:

sherpa> subtract(1)
sherpa> set_method("neldermead")
sherpa> set_stat("chi2xspecvar")
sherpa> fit(1)
Data Set               = 1
Method                = neldermead
Statistic             = chi2xspecvar
Initial fit statistic = 305.818
Final fit statistic   = 299.075 at function evaluation 290
Data points           = 263
Degrees of freedom    = 261
Probability [Q-value] = 0.0525557
Reduced statistic     = 1.14588
Change in statistic   = 6.74291
   modelA.gamma   2.0745
   modelA.ampl    0.00265526

sherpa> plot_fit()

Figure 4 shows the resulting plot.

Figure 4: Fit to simulated data set

Figure 4: Fit to simulated data set

Plot showing the fit to the energy-filtered, simulated data set.

Here, we examine the fit using the Sherpa covariance command:

sherpa> covariance()
Data Set               = 1
Confidence Method     = covariance
Fitting Method        = neldermead
Statistic             = chi2xspecvar
covariance 1-sigma (68.2689%) bounds:
   Param            Best-Fit  Lower Bound  Upper Bound
   -----            --------  -----------  -----------
   modelA.gamma       2.0745   -0.0160791    0.0160791
   modelA.ampl    0.00265526 -2.84399e-05  2.84399e-05

This quick method of calculating one-sigma parameter ranges using covar() may underestimate the errors for a complex parameter space. The slower, but more appropriate, confidence algorithm should be used in such cases.

sherpa> conf()
modelA.ampl lower bound:        -2.84399e-05
modelA.gamma lower bound:       -0.0160791
modelA.ampl upper bound:        2.84399e-05
modelA.gamma upper bound:       0.0160791
Data Set               = 1
Confidence Method     = confidence
Fitting Method        = neldermead
Statistic             = chi2xspecvar
confidence 1-sigma (68.2689%) bounds:
   Param            Best-Fit  Lower Bound  Upper Bound
   -----            --------  -----------  -----------
   modelA.gamma       2.0745   -0.0160791    0.0160791
   modelA.ampl    0.00265526 -2.84399e-05  2.84399e-05

Simulating Multiple Data Sets

One may simulate multiple data sets within the same Sherpa session; each data set is assigned an individual ID.

For example, we can simulate a second data set as we did the first, above, by defining the instrument response with the ARF and RMF, defining a source model expression , and matching the exposure, backscale, and area scale to the background data set:

sherpa> arf2=unpack_arf("dataB_arf.fits")
sherpa> rmf2=unpack_rmf("dataB_rmf.fits")

sherpa> set_source(2,xsphabs.modelB1*powlaw1d.modelB2)
sherpa> modelB1.nH=0.025
sherpa> modelB2.gamma=1.7
sherpa> modelB2.ampl=1.0

sherpa> bkg2=unpack_pha("dataB_bkg.pha")
WARNING: systematic errors were not found in file 'dataB_bkg.pha'
statistical errors were found in file 'dataB_bkg.pha'
but not used; to use them, re-read with use_errors=True

sherpa> fake_pha(2,arf=arf2,rmf=rmf2,exposure=bkg2.exposure, bkg=bkg2, backscal=bkg2.backscal, areascal=bkg2.areascal)

sherpa> calc_data_sum(id=2)
           30936530.0

We will now normalize the second simulated data set in the same manner as we did the first: dividing the known count rate, e.g. 0.4, by the non-normalized count rate to obtain a scaling factor, and then re-simulating the data set.

sherpa> modelB2.ampl=0.4/(calc_data_sum(id=2)/get_exposure(2))

sherpa> fake_pha(2, arf=arf2,rmf=rmf2,exposure=bkg2.exposure, bkg=bkg2, backscal=bkg2.backscal, areascal=bkg2.areascal)

sherpa> calc_data_sum(id=2)
            10703.0

Finally, the second simulated data set can be plotted as follows:

sherpa> plot_data(2)

and written to file:

sherpa> save_pha(2,"dataB_sim1.pha")

sherpa> save_arrays("dataA_sim2.fits", [get_model_plot(2).xlo, get_model_plot(2).y], ascii=False)

sherpa> save_arrays("dataA_sim2.txt", [get_model_plot(2).xlo, get_model_plot(2).y], ascii=True)

To plot both simulated data sets at once:

sherpa> notice(0.5,8)
sherpa> plot("data",1,"data",2)

Figure 5 shows the resulting plot.

Figure 5: Using more than one simulation at a time

Figure 5: Using more than one simulation at a time

Two simulated data sets plotted together in one window with the Sherpa plot command.

To exit Sherpa:

sherpa> quit()

unix%

Using a Sherpa Script to Run Simulations

sherpa> !cat multi_sim.py
#!/usr/bin/env python
from sherpa.astro.ui import *

# Create a fake spectrum with a count rate of <cnt_rate> in the energy
# range <energy>, with a total exposure time of <fake_time>.

fake_time = 100000
elo = 0.5
ehi = 2.0
cnt_rate = 0.02

# Define instrument response and source model
rmf = unpack_rmf("aciss_aimpt_cy12.rmf")
arf = unpack_arf("aciss_aimpt_cy12.arf")
set_source(1, powlaw1d.pow1)
pow1.gamma = 1.9

# Define structure to allow manipulation of the pow1.ampl parameter
# value in Python, and give an initial guess for fake_pha
pow_ampl = get_par("pow1.ampl")
pow_ampl.val = 1e-5

# Run fake_pha once to get model counts for initial amplitude, then
# normalize to get desired count rate
fake_pha(1,arf=arf,rmf=rmf,exposure=fake_time)
pow_ampl.val *= cnt_rate / (calc_model_sum(elo,ehi)/fake_time)
set_par(pow_ampl)
fake_pha(1,arf=arf,rmf=rmf,exposure=fake_time)

# Verify correct counts in fake data set and plot data
print("Count rate in specified energy range is")
print(calc_data_sum(lo=elo,hi=ehi)/fake_time)
plot_data()

sherpa> execfile("multi_sim.py")
Count rate in specified energy range is
0.01994

unix% sherpa multi_sim.py

unix% sherpa multi_sim.py >&! multi_sim.out

sherpa> !cat plasma.py
#!/usr/bin/env python
from sherpa.astro.ui import *

# This script simulates emission from a hot plasma using two different models.

arf=unpack_arf("dataB_arf.fits")
rmf=unpack_rmf("dataB_rmf.fits")

fake_time=5000
set_source(1,xswabs.abs1*xsmekal.m1)

abs1.nH=0.03
m1.kT=4.0
m1.norm=0.025

fake_pha(1,arf=arf,rmf=rmf,exposure=fake_time,grouped=False)

# renormalize to 2-10 keV flux of 1e-13 erg/s/cm**2
modflux1=calc_energy_flux(id=1,lo=2,hi=10)
obsflux1=1.e-13

foo1=get_par("m1.norm")
foo1.val=foo1.val*(obsflux1/modflux1)
set_par(foo1)

fake_pha(1,arf=arf,rmf=rmf,exposure=fake_time)
save_pha(1,"sim_meka.pha")

set_source(2,xswabs.abs1*xsapec.ap1)

ap1.kT=4.0
ap1.norm=0.025

fake_pha(2,arf=arf,rmf=rmf,exposure=fake_time)

# renormalize to the 2-10 keV flux of 1.e-13 erg/s/cm**2
modflux2=calc_energy_flux(id=2,lo=2,hi=10)
obsflux2=1.e-13

foo2=get_par("ap1.norm")
foo2.val=foo2.val*(obsflux2/modflux2)
set_par(foo2)

fake_pha(2,arf=arf,rmf=rmf,exposure=fake_time)
save_pha(2,"sim_apec.pha")

exit()

unix% sherpa plasma.py >&! plasma.out

unix% sherpa plasma.sl >&! plasma.out

Scripting It

The file fit.py is a Python script which performs the primary commands used above; it can be executed by typing execfile("fit.py") on the Sherpa command line.

The Sherpa script command may be used to save everything typed on the command line in a Sherpa session:

sherpa> script(filename="sherpa.log", clobber=False)

(Note that restoring a Sherpa session from such a file could be problematic since it may include syntax errors, unwanted fitting trials, etcetera.)

The CXC is committed to helping Sherpa users transition to new syntax as smoothly as possible. If you have existing Sherpa scripts or save files, submit them to us via the CXC Helpdesk and we will provide the CIAO/Sherpa 4.4 syntax to you.
