MTA Monitoring Report 06/06/25 - 06/12/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (985,393) (910,239) (803,225) (178,149) (837,378) (526,66) (21,95)     (849,169) (1000,214) (670,387) (335,412)
Flickering Warm Pixels   (802,665) (427,125) (104,31) (726,537) (99,899) (318,53) (811,637) (617,159) (394,80) (680,391)   (263,317) (357,303) (233,227) (233,102) (161,206) (369,376) (884,31) (126,856) (275,393) (597,187)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           510 1022 512   1022 512
Flickering Warm column candidates 817

ACIS Focal Plane Temperature

For this period, 4 peaks are observed.

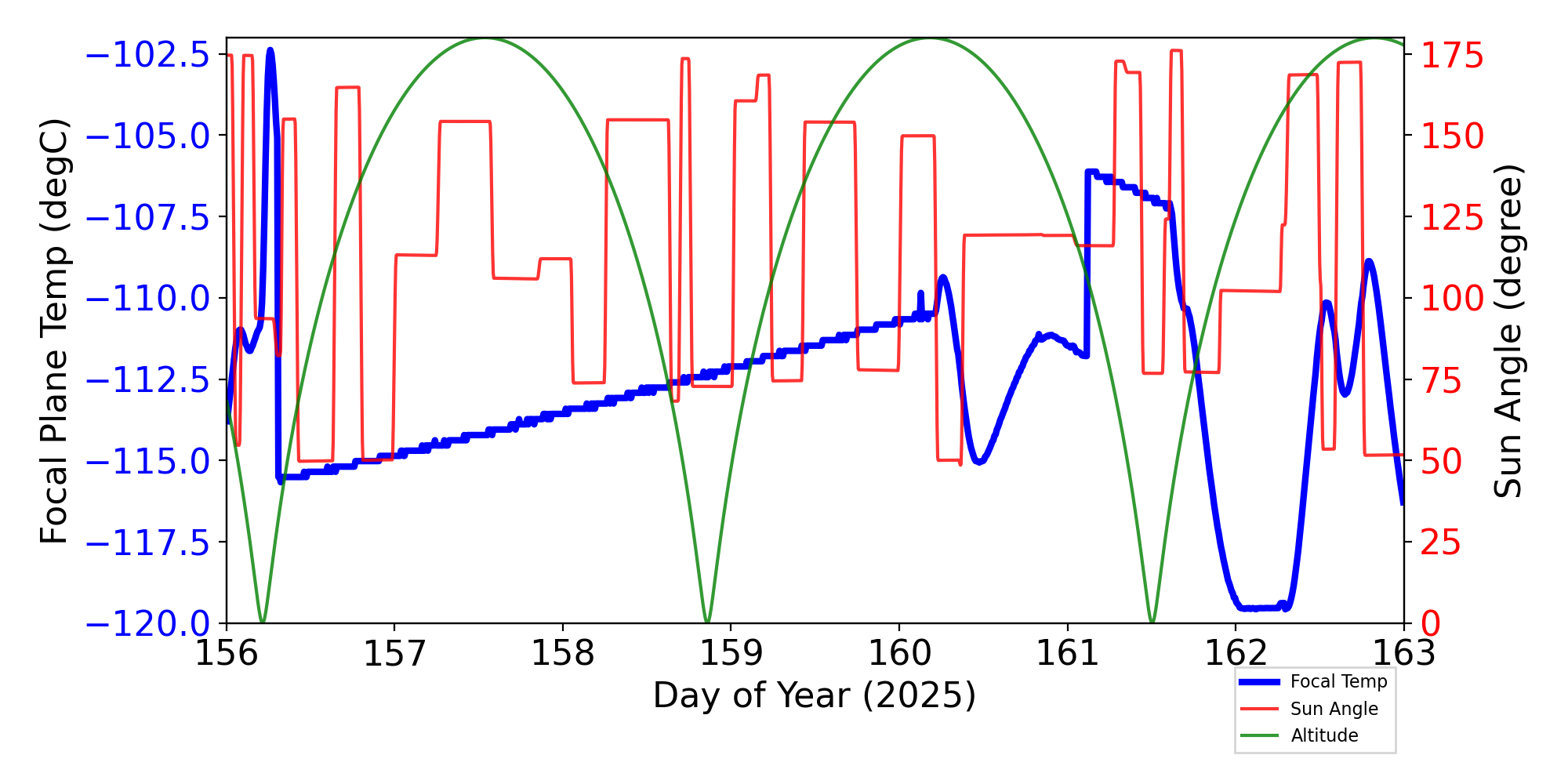

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

11 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 06/06/25 06/07/25 06/08/25 06/09/25 06/10/25 06/11/25 06/12/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AFTBLKHDT           308.13   (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI         (-3.39)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI         (-3.43)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV       (119.00)       (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
MZOBACONE 311.72 313.52 310.88 312.15 313.00 314.76 309.35 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 303.55 304.69 302.57 304.05   306.06 301.11 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBADIAGRAD 4.41 4.60 4.85 4.01 4.66 4.41   (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE   309.21   308.28 309.63 310.81   (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCM_TX1     (268.79)         (283.15)
348.15		 (269.15)
404.15		 KTRANSPONDER-1 EXT BPL TEMP
TFTERANGE 48.83 48.90 46.34 48.92 49.10 48.78 46.18 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3     (268.06)   (268.43)     (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP


IRUs

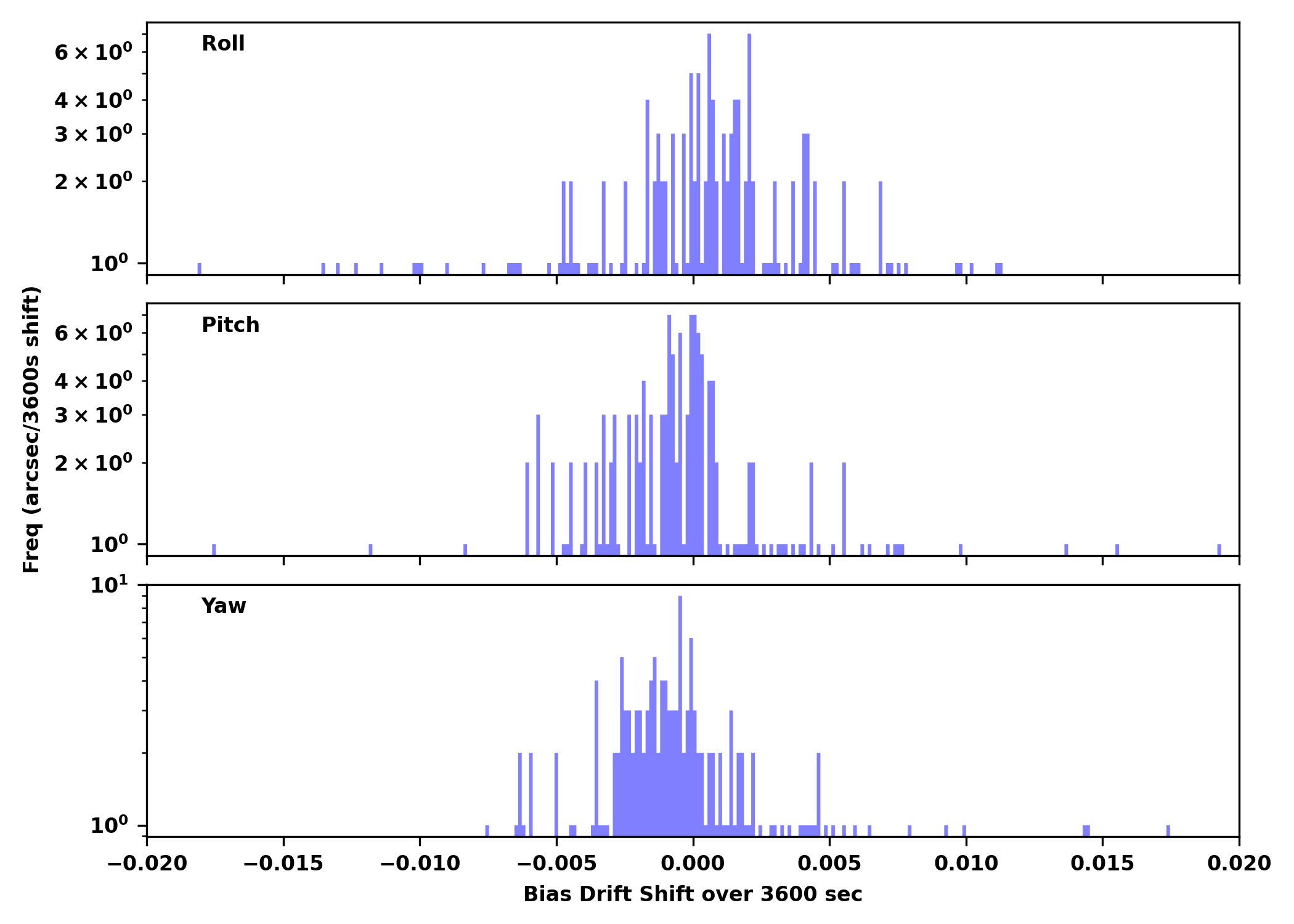

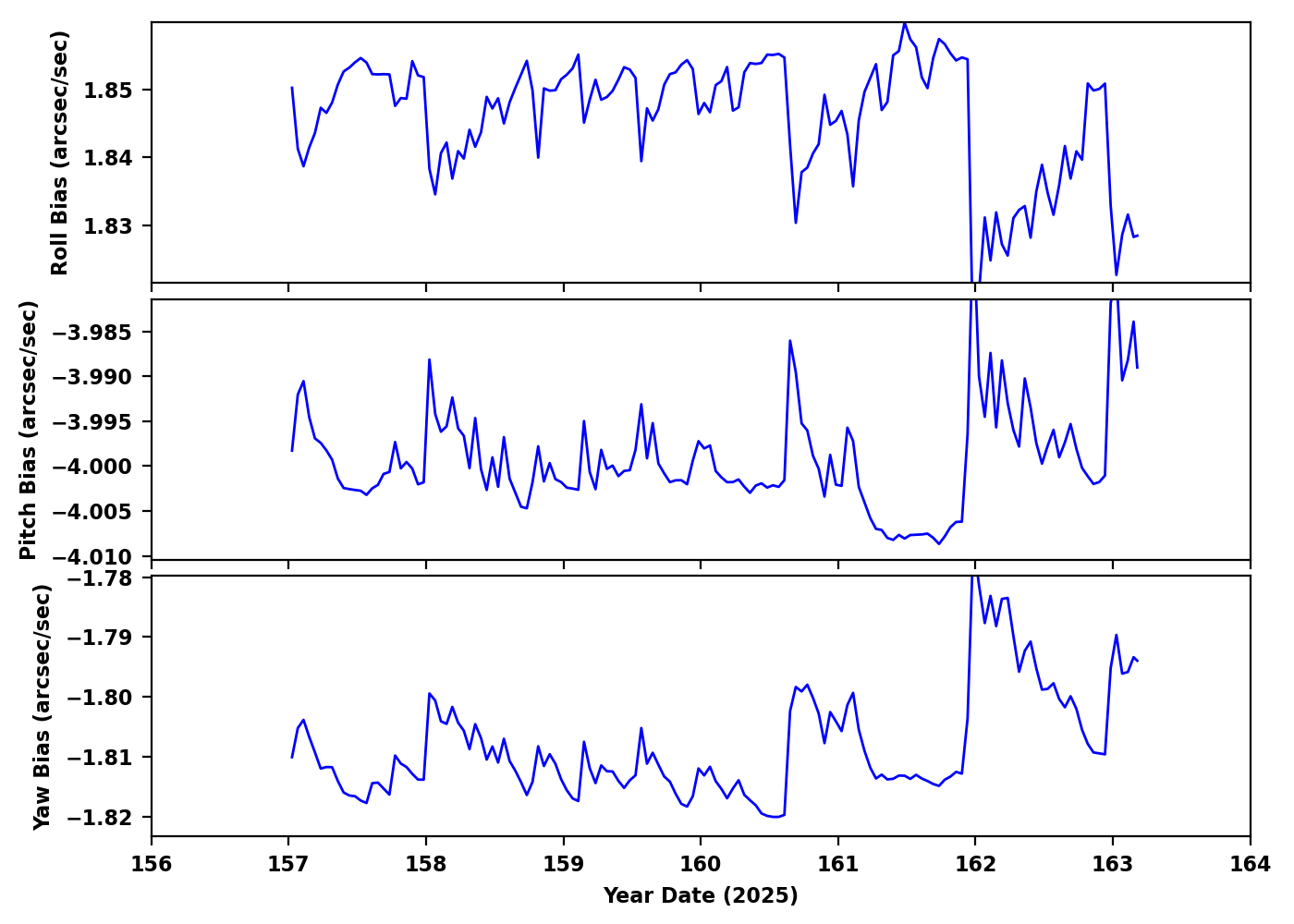

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
30954 ACIS-67 NONE 1RXSJ174155.3-121157 OK OK
30958 ACIS-5678 NONE NGC410 OK OK
28669 ACIS-567 NONE NGC410 OK OK
29613 ACIS-01236 NONE A1795 OK OK
29444 ACIS-67 NONE SZ Cha OK OK
29894 ACIS-67 NONE NGVS J123104.48+115636.4 OK OK
28008 ACIS-5678 HETG IGR J16320-4751 OK/NA OK
28684 ACIS-367 NONE Abell 3017 OK OK
30957 ACIS-0123 NONE XMMU J170147.3-421407 OK OK
29907 ACIS-0123 NONE IGR J17538-2544 OK OK
29785 ACIS-5678 HETG 4U 1630-47 OK/NA OK
30959 ACIS-367 NONE Abell 3017 OK OK
29941 ACIS-67 NONE QSO B1033+1342 OK OK
29734 ACIS-0123 NONE 4FGL J1721.3-5257 OK OK
28538 ACIS-23567 NONE NGC1300 OK OK
30955 ACIS-56789 HETG IGR J16320-4751 OK/NA OK
28740 HRC-I NONE LHS 475 OK OK
28100 ACIS-23678 NONE J-PLUS EELG-7 OK OK
28798 ACIS-0123 NONE SpARCS J163437+402149 OK OK
28535 ACIS-67 NONE Sextans A OK OK
30173 ACIS-3678 NONE NGC4571 OK OK
28253 ACIS-5678 NONE SDSS J022211.96-083036.2 OK OK
28736 HRC-I NONE NGC 6537 OK OK
30961 ACIS-0123 NONE HEP G000.669+00.642 OK OK
30963 ACIS-23567 NONE NGC1300 OK OK

Trending

This week's focus is ACIS

Last reported on Mar 27.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
1cbat -0.0230.004(2.09+/-0.03)e20.02 +/- 0.05KCAMERA BODY TEMP. A
1cbbt -0.1200.005(2.10+/-0.03)e20.00 +/- 0.05KCAMERA BODY TEMP. B
1crat 0.2160.003(1.48+/-0.03)e2-0.00 +/- 0.05KCOLD RADIATOR TEMP. A
1crbt 0.2330.004(1.48+/-0.03)e2-0.01 +/- 0.05KCOLD RADIATOR TEMP. B
1dactbt 0.1180.003(2.58+/-0.02)e20.07 +/- 0.06KDA COLLIMATOR TEMP. B
1deamzt 0.5120.006(2.87+/-0.06)e2-0.10 +/- 0.12KDEA -Z PANEL TEMP
1dpamyt 0.4540.007(2.88+/-0.06)e2-0.22 +/- 0.14KDPA -Y PANEL TEMP
1dpamzt 0.4270.006(2.91+/-0.05)e2-0.17 +/- 0.13KDPA -Z PANEL TEMP
1oahat 0.1310.004(2.44+/-0.02)e2-0.00 +/- 0.05KOPEN ACTUATOR HOUSING TEMP. A
1oahbt 0.1320.003(2.41+/-0.02)e20.06 +/- 0.05KOPEN ACTUATOR HOUSING TEMP. B
1pdeaat -0.0280.009(3.04+/-0.06)e2-0.24 +/- 0.21KPSMC DEA PS A TEMP
1pdeabt 0.0490.009(2.96+/-0.06)e2-0.22 +/- 0.21KPSMC DEA PS B TEMP
1wrat 0.0980.003(1.91+/-0.02)e2-0.01 +/- 0.05KWARM RADIATOR TEMP. A
1wrbt 0.0870.003(1.91+/-0.02)e2-0.01 +/- 0.05KWARM RADIATOR TEMP. B

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
deahk1 0.0089.677e-050.24 +/- 0.07-(2.51+/-17.65)e-4CDPA Thermistor 1 - BEP PC Board
deahk2 0.0089.923e-050.22 +/- 0.07-(3.16+/-18.22)e-4CDPA Thermistor 2 - BEP Oscillator
deahk3 0.0021.300e-040.26 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 3 - FEP 0 Mongoose
deahk4 0.0051.176e-040.23 +/- 0.07-(6.47+/-23.78)e-4CDPA Thermistor 4 - FEP 0 PC Board
deahk5 0.0041.274e-040.26 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 5 - FEP 0 ACTEL
deahk6 0.0041.231e-040.25 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 6 - FEP 0 RAM
deahk7 0.0061.145e-040.20 +/- 0.07-(8.01+/-22.84)e-4CDPA Thermistor 7 - FEP 0 Frame Buf
deahk8 0.0071.251e-040.30 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 8 - FEP 1 Mongoose
deahk9 0.0071.179e-040.26 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 9 - FEP 1 PC Board
deahk10 0.0071.272e-040.29 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 10- FEP 1 ACTEL
deahk11 0.0071.253e-040.28 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 11- FEP 1 RAM
deahk12 0.0071.171e-040.22 +/- 0.08-(8.28+/-23.21)e-4CDPA Thermistor 12- FEP 1 Frame Buf
deahk13 0.000e+000.000e+00(0.00+/-0.00)e0(0.00+/-0.00)e0CDEA Video Board ADC
deahk15 0.0410.040-3.90 +/- 21.69-0.01 +/- 0.02CFocal Plane Temp. Board 12
deahk16 0.0430.041-2.21 +/- 21.70-(9.71+/-205.00)e-4CFocal Plane Temp. Board 11

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
deahk17 -1.859e-051.199e-05-0.00 +/- 0.01(6.71+/-4.81)e-6VDPA Ground Reference 1
deahk18 -9.332e-059.897e-050.05 +/- 0.05-(1.39+/-2.92)e-5VDPA 5V Housekeeping A
deahk19 -1.896e-051.199e-05-0.00 +/- 0.01-(9.78+/-45.05)e-7VDPA Ground Reference 2
deahk20 -7.094e-059.897e-050.05 +/- 0.05(1.84+/-2.44)e-5VDPA 5V Housekeeping B
deahk25 -9.901e-051.958e-040.30 +/- 0.10(9.43+/-5.17)e-5VPrimary Raw DEA 28V DC
deahk26 -2.491e-041.966e-040.25 +/- 0.10(8.55+/-5.01)e-5VPrimary Raw DEA 24V DC
deahk27 2.597e-051.023e-04-0.16 +/- 0.06(6.41+/-8.01)e-5VPrimary Raw DEA -15.5V
deahk28 -1.139e-049.736e-050.16 +/- 0.05-(2.19+/-5.97)e-5VPrimary Raw DEA +15.5V
deahk29 -6.506e-051.007e-04-0.06 +/- 0.05-(1.73+/-31.75)e-6VPrimary Raw DEA -6V DC
deahk30 -7.041e-059.882e-050.06 +/- 0.05(2.29+/-2.35)e-5VPrimary Raw DEA +6V DC
deahk31 -9.755e-061.196e-05(5.94+/-60.00)e-4(3.37+/-2.94)e-6mAmpRelative Dose Rad. Monitor Side A
deahk32 -9.159e-061.197e-05(1.03+/-60.00)e-4(8.65+/-27.51)e-7VInterface Ground Reference
