MTA Monitoring Report 06/20/25 - 06/26/25

Archive of all weekly reports
Archive of monthly reports

Radiation

(06/20): AR 4114 again produced an X1.9-class flare yesterday, CME is unlikely from this event. Solar activity is likely to be moderate with a slight chance for an X-class flare on days one, two, and three (20 Jun, 21 Jun, 22 Jun).

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels			(178,149) (526,66) (803,225)	(21,95)		(1000,214) (849,169) (670,387)	(335,412)
Flickering Warm Pixels	(786,117)	(90,859) (802,665) (985,393) (910,239)	(99,899) (837,378) (665,25) (104,31) (726,537)	(318,53) (811,637) (680,391) (394,80)	(357,303) (161,206) (282,385) (669,577) (369,376) (263,317) (233,227)	(884,31)	(126,856)	(136,65) (447,769) (139,109) (597,187) (275,393) (675,304) (182,474)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					510 512 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
171.20	-113.08	1.87
173.39	-113.31	0.56
174.06	-109.03	0.70
174.80	-108.41	0.51
175.18	-110.48	0.65
175.83	-111.09	0.41

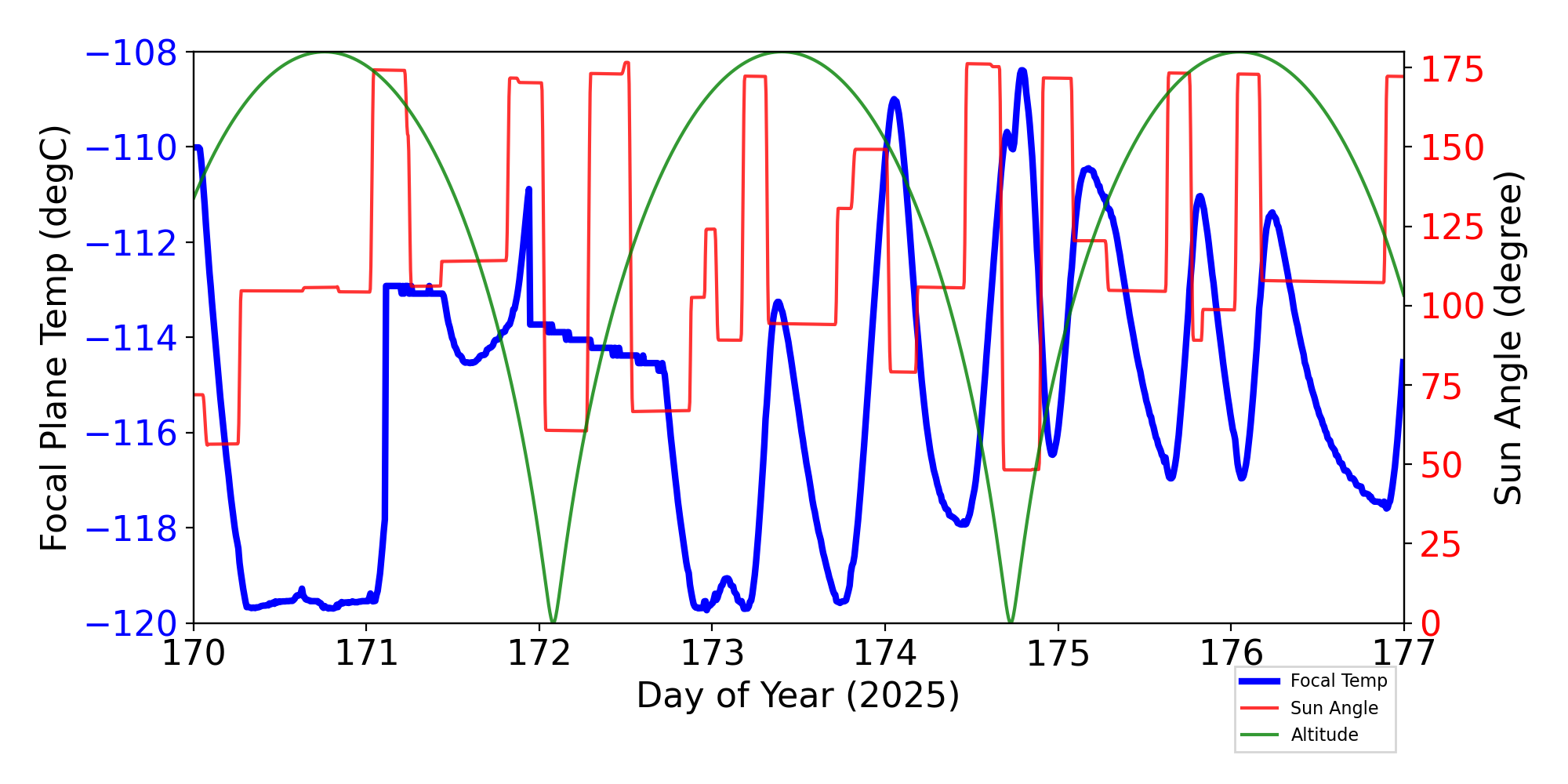

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

11 TSC moves this period

weekly average time/step	0.00133 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	06/20/25	06/21/25	06/22/25	06/23/25	06/24/25	06/25/25	06/26/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AWD1TQI	(-3.39)			(-3.39)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD4TQI	(-3.43)							(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 4 TORQUE CURRENT
AWD6TQI	(-3.43)			(-3.39)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CALPALV	(0.00)			(110.00)				(126.0) 128.0	(125.0) 129.0	V	Cal Pulser Amplitude
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE	312.36	309.07	311.62	313.40	310.43	313.11		(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	304.22	301.23	303.21	304.94	302.36	304.79	301.35	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG		306.28			307.72			(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.52	4.74	4.69	4.54	4.60	4.56		(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	308.73			309.41		309.24		(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
SPHVLV	(0.00)							(72.0) 128.0	(71.0) 129.0	(2SPHVLV)	Spect Bot MCP HV Monitor
SPINATM	(-117.76)							(-12.0) 35.0	(-15.0) 40.0	C	Spect Det Temperature
TFTERANGE	48.92	46.36	48.35	48.63	48.40	48.98		(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3	(268.06)	(268.43)	(268.06)	(268.43)		(268.79)		(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

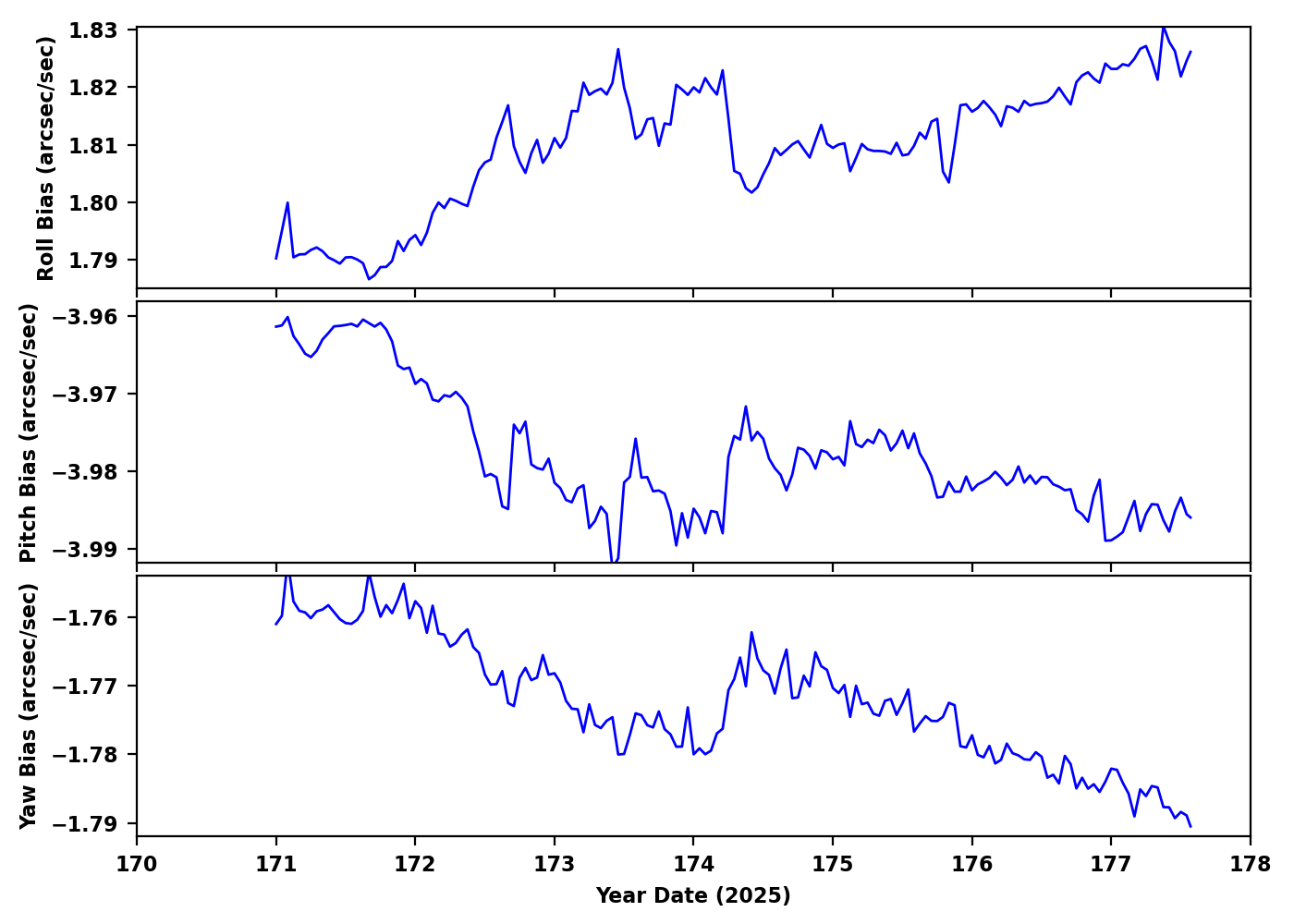

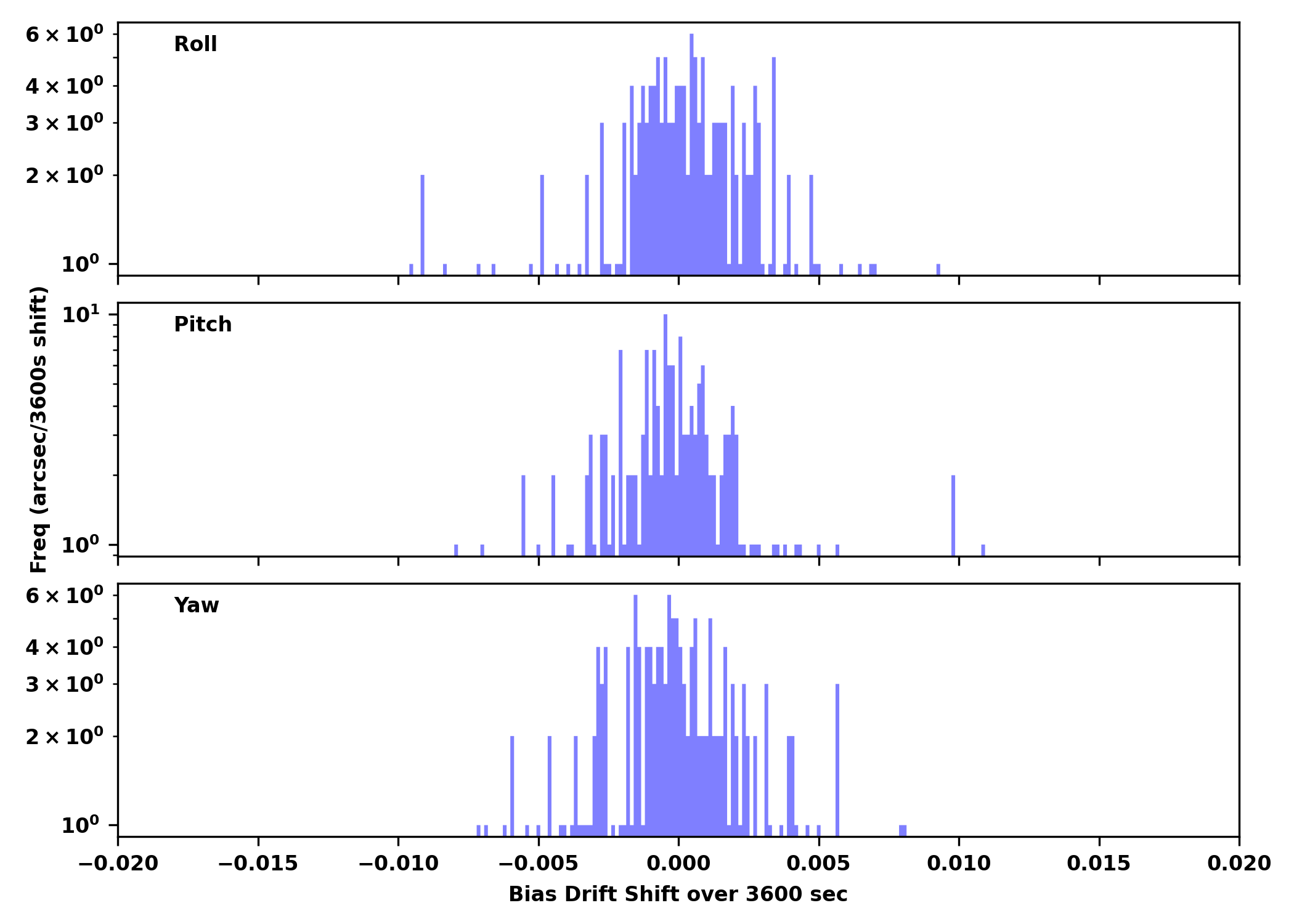

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30157	ACIS-3678	NONE	NGC3059	OK	OK
28784	HRC-S	LETG	LEDA407	OK/NA	OK
28518	ACIS-0123	NONE	PSR J1101-6101	OK	OK
30969	ACIS-67	NONE	Kepler's SNR	OK	OK
30968	HRC-S	LETG	LEDA407	OK/NA	OK
28552	ACIS-23567	NONE	NGC7496	OK	OK
29846	ACIS-67	NONE	Kepler's SNR	OK	OK
28239	ACIS-5678	NONE	SDSS J210729.76+092113.8	OK	OK
28254	ACIS-5678	NONE	SDSS J223921.86+135256.2	OK	OK
28648	ACIS-01237	NONE	SDSS J0100+2802	OK	OK
30970	ACIS-67	NONE	Kepler's SNR	OK	OK
30045	ACIS-567	NONE	PSZ2G097.52+51.70	OK	OK
28244	ACIS-5678	NONE	SDSS J163148.76+202438.7	OK	OK
30175	ACIS-3678	NONE	NGC4689	OK	OK
29736	ACIS-0123	NONE	4FGL J1721.3-5257	OK	OK
28777	HRC-I	NONE	SN 1941C	OK	OK
29667	ACIS-3678	NONE	NGC4951	OK	OK
28003	HRC-I	NONE	LHS 475	OK	OK
28730	ACIS-0123	NONE	[JDW2009] G359.55+0.16	OK	OK
28275	ACIS-5678	NONE	SDSS J134100.24+422553.1	OK	OK
30129	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
30976	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
30975	ACIS-3678	NONE	NGC4951	OK	OK
29620	ACIS-2567	NONE	A1795	OK	OK
28139	ACIS-67	NONE	IGR J17381-2345	OK	OK
30977	ACIS-67	NONE	SNR G1.9+0.3	OK	OK
28076	ACIS-67	NONE	SN 2014ab	OK	OK
29591	ACIS-67	NONE	Cas A	OK	OK
28632	ACIS-0123	NONE	Abell 370	OK	OK

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
1dppwra		-0.557	0.007	34.06 +/- 6.18	-0.00 +/- 0.16	W	DPA POWER A
1dppwrb		-0.518	0.008	30.13 +/- 6.69	-0.32 +/- 0.20	W	DPA POWER B

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
flexadif	0.041	0.008	65.08 +/- 5.28	-0.03 +/- 0.08	K	DIFF FLEX A & SET
flexbdif	0.219	0.007	61.50 +/- 4.79	-0.02 +/- 0.08	K	DIFF FLEX B & SET
flexcdif	0.090	0.013	73.75 +/- 8.99	0.10 +/- 0.24	K	DIFF FLEX C & SET
