MTA Monitoring Report 07/04/25 - 07/10/25

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels								(916,83)
Current Warm Pixels	(786,117)	(802,665) (910,239) (985,393)	(837,378) (178,149) (526,66) (104,31) (803,225) (726,537) (99,899)	(811,637) (21,95)		(670,387) (849,169)	(335,412)
Flickering Warm Pixels	(283,278)	(90,859) (427,125)	(665,25)	(617,159) (394,80)	(369,376) (263,317)	(884,31) (1000,214)	(368,231)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 512 510		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 9 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
183.71	-112.84	0.50
184.66	-109.56	0.62
185.11	-112.92	0.87
186.09	-111.94	0.50
186.57	-112.34	0.47
187.51	-110.50	0.90
188.02	-98.42	0.72
188.99	-110.02	0.86
189.81	-109.11	0.50

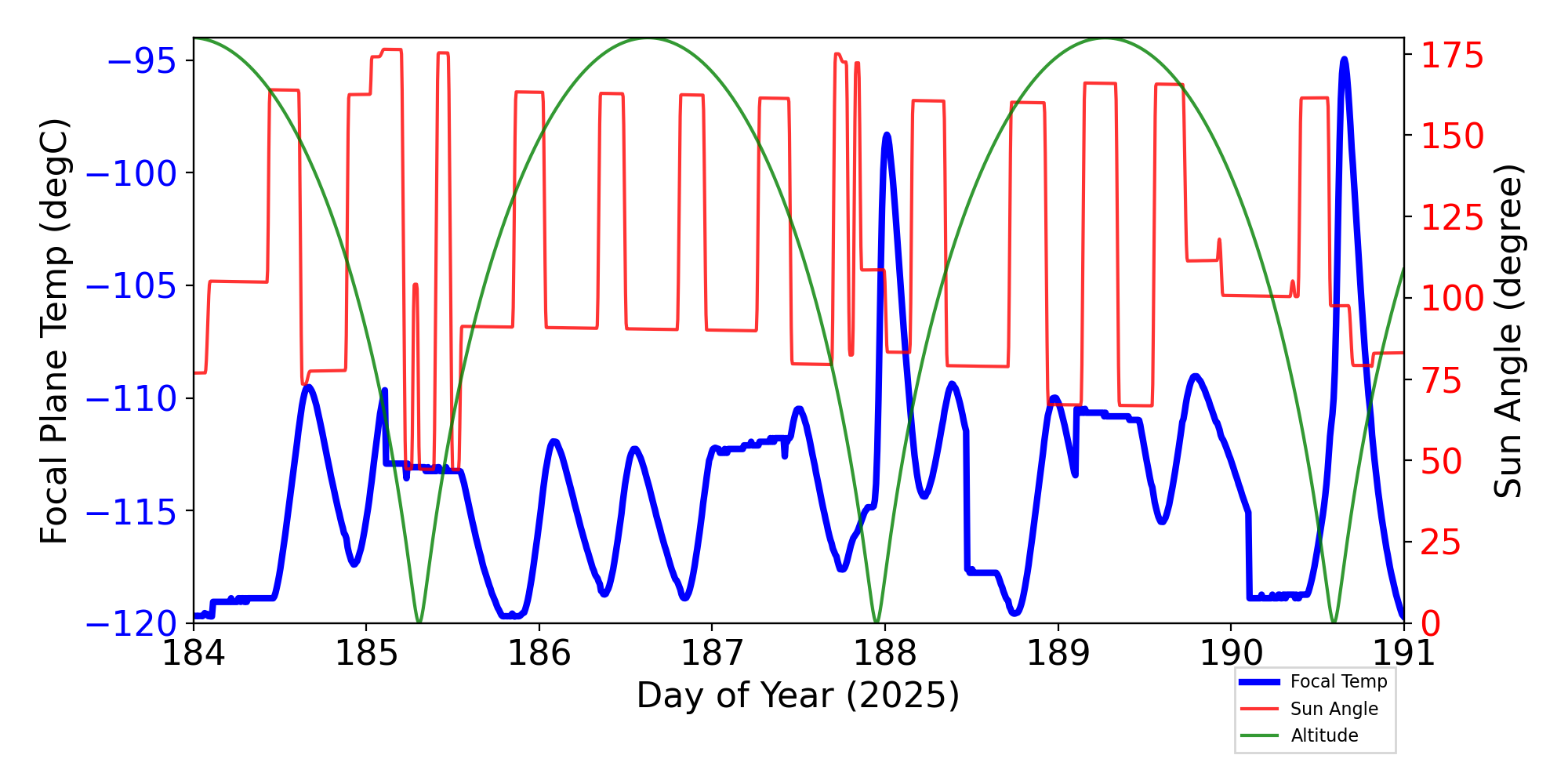

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

9 TSC moves this period

weekly average time/step	0.00133 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	07/04/25	07/05/25	07/06/25	07/07/25	07/08/25	07/09/25	07/10/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AFTBLKHDT						308.49	308.32	(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI	(-3.35)		(-3.39)					(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI	(-3.35)		(-3.43)			(-3.43)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)	(0.00)		(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE	309.67	311.26	311.91	312.86	310.28	314.55	313.99	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	301.68	302.88	303.43	304.18	302.19		305.54	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG	306.59							(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.78	4.75	4.71	4.69	4.65	4.57	4.62	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE				308.62		310.25	310.27	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCM_TX1		(268.79)						(283.15) 348.15	(269.15) 404.15	K	TRANSPONDER-1 EXT BPL TEMP
TFTERANGE	47.06		46.68		48.06	49.56	47.21	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3		(268.43)			(268.79)	(268.43)		(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

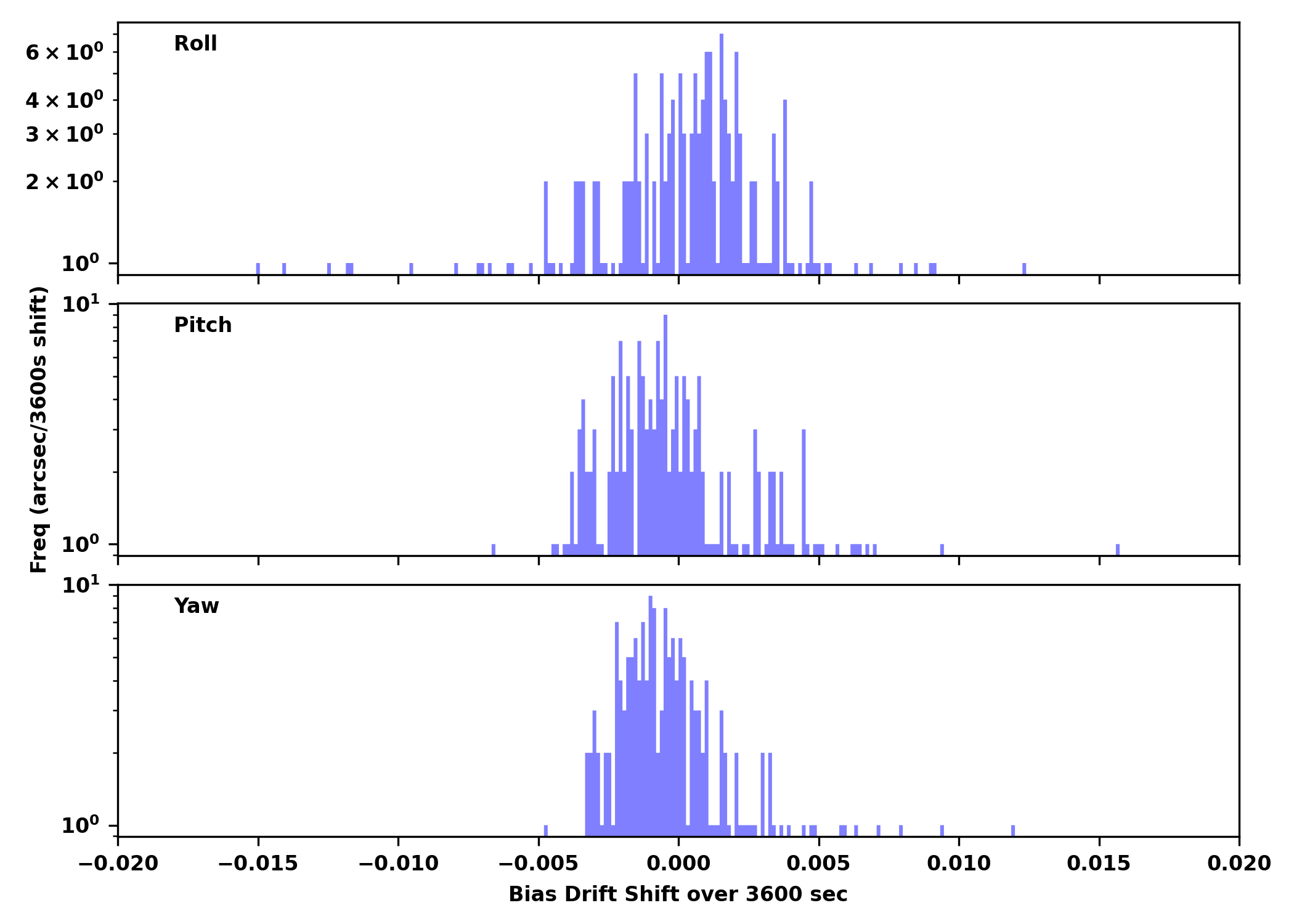

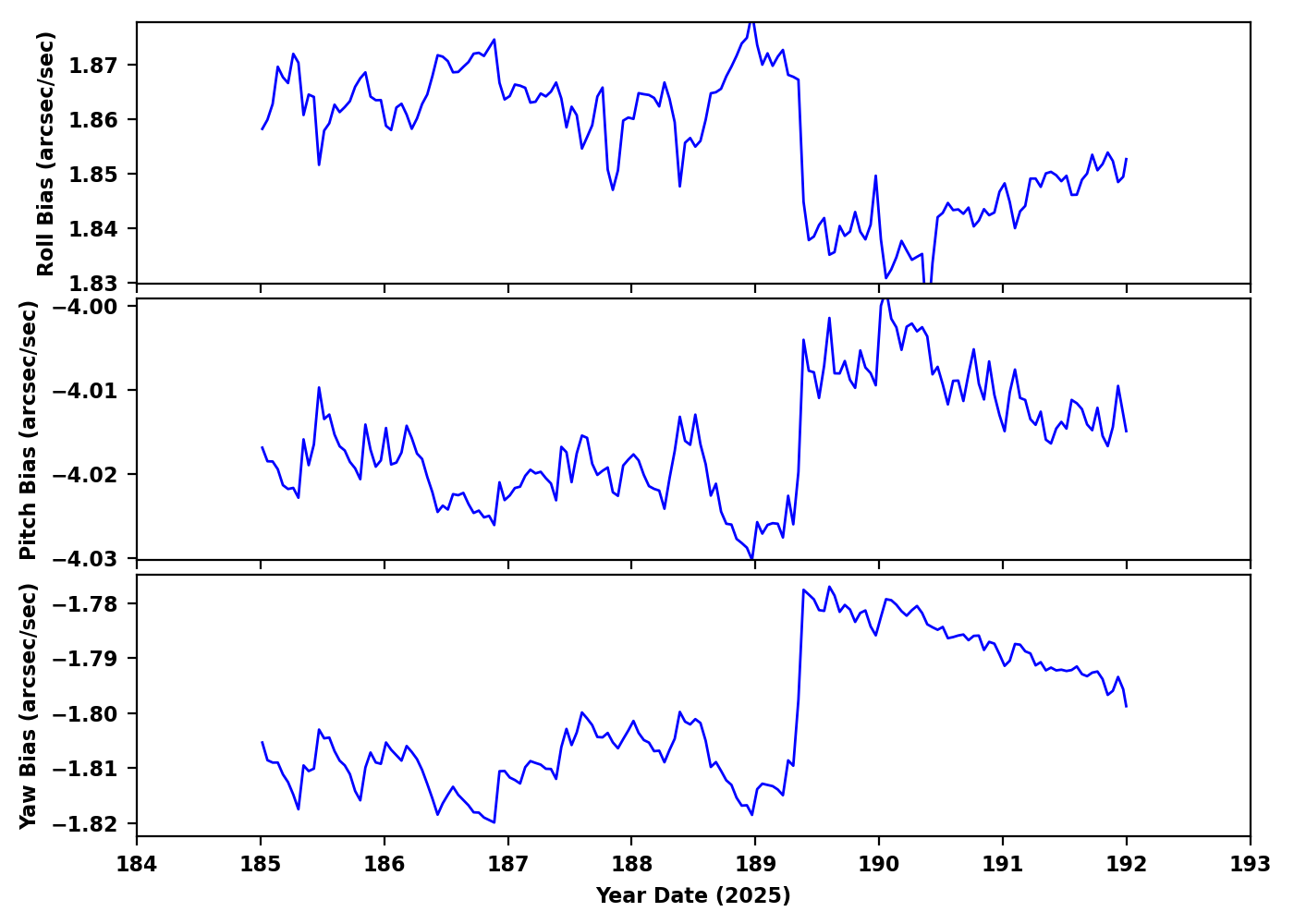

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30978	ACIS-67	NONE	NGC_6814_s4	OK	OK
28857	ACIS-0123	NONE	CMZ Molecular Cloud	OK	OK
29614	ACIS-01236	NONE	A1795	OK	OK
29615	ACIS-0123	NONE	A1795	OK	OK
30985	ACIS-0123	NONE	CMZ Molecular Cloud	OK	OK
30984	ACIS-0123	NONE	CMZ Molecular Cloud	OK	OK
29616	ACIS-0123	NONE	A1795	OK	OK
30982	ACIS-0123	NONE	[JDW2009] G359.55+0.16	OK	OK
29617	ACIS-01236	NONE	A1795	OK	OK
29892	ACIS-67	NONE	NGVS J123027.37+074920.8	OK	OK
28128	ACIS-0123	NONE	[JDW2009] G359.55+0.16	OK	OK
30991	ACIS-0123	NONE	[JDW2009] G359.55+0.16	OK	OK
28655	ACIS-5678	HETG	NGC 4579	OK/NA	OK
28065	ACIS-2367	NONE	SNR G15.9+0.2	OK	OK
28852	ACIS-0123	NONE	A1550	OK	OK
30990	ACIS-2367	NONE	SNR G15.9+0.2	OK	OK
30993	ACIS-0123	NONE	A1550	OK	OK
28746	HRC-I	NONE	G29-38	OK	OK
29669	ACIS-3678	NONE	NGC5134	OK	OK
28650	ACIS-01237	NONE	SDSS J0100+2802	OK	OK
30997	ACIS-0123	NONE	MACSJ2020.3-2225	OK	OK
30992	ACIS-01237	NONE	SDSS J0100+2802	OK	OK
30988	ACIS-0123	NONE	MACSJ2020.3-2225	OK	OK
30280	ACIS-01236	NONE	Perseus cluster	OK	OK
30987	ACIS-67	NONE	NGC6814	OK	OK
30995	ACIS-01236	NONE	Perseus cluster	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
3btu_bpt	0.432	0.009	(2.66+/-0.07)e2	-0.13 +/- 0.21	K	BTU BASEPLATE (+X)), ABORT HTR TSC2
3fabraat	0.034	0.005	(2.66+/-0.03)e2	-0.05 +/- 0.08	K	FA STRUCTURE AT BEARING A ABORT HTR. FA6 TEMP
3fabrcat	0.008	0.009	(2.75+/-0.06)e2	-0.01 +/- 0.18	K	FA STRUCTURE AT BEARING C ABORT HTR. FA6 TEMP
3famyzat	-0.637	0.016	(2.81+/-0.12)e2	0.02 +/- 0.22	K	FA STRUCTURE +X FACE AT -Y-Z END ABORT HTR. FA6 TEMP
3fapyzat	-0.798	0.014	(2.80+/-0.12)e2	-0.05 +/- 0.09	K	FA STRUCTURE +X FACE AT +Y+Z END ABORT HTR. FA6 TEMP
3faralat	-0.272	0.015	(2.75+/-0.11)e2	0.05 +/- 0.28	K	FA STRUCTURE AT RAIL -Z, ABORT HEATER FA6 TEMP
3flcabpt	0.385	0.004	(2.82+/-0.04)e2	-0.11 +/- 0.09	K	FLCA BASEPLATE (+X)
3rctubpt	0.564	0.011	(2.73+/-0.09)e2	-0.26 +/- 0.26	K	RCTU BASEPLATE (+X)
3tsmxcet	2.071	0.028	(2.28+/-0.24)e2	0.09 +/- 0.58	K	-X TURTLE SHELL NR HRC CEA
3tsmxspt	10.267	0.112	(3.16+/-1.07)e2	2.10 +/- 1.78	K	-X TURTLE SHELL NR ACIS SS
3tsmydpt	0.870	0.012	(2.33+/-0.10)e2	-0.26 +/- 0.24	K	-Y TURTLE SHELL NR ACIS DPA
3tspyfet	0.324	0.008	(2.34+/-0.06)e2	-0.20 +/- 0.17	K	+Y TURTLE SHELL NR HRC FEA
3tspzdet	0.665	0.009	(2.67+/-0.08)e2	-0.06 +/- 0.20	K	+Z TURTLE SHELL NR ACIS DEA
3tspzspt	0.705	0.009	(2.71+/-0.08)e2	-0.10 +/- 0.18	K	+Z TURTLE SHELL NR ACIS SS
3ttacs1t	0.172	0.003	(2.66+/-0.02)e2	0.02 +/- 0.07	K	TT at ACIS Attach #1 Abort Htr
3ttacs2t	0.157	0.004	(2.66+/-0.03)e2	0.03 +/- 0.09	K	TT at ACIS Attach #2 Abort Htr
3ttacs3t	0.150	0.002	(2.62+/-0.02)e2	0.06 +/- 0.03	K	TT at ACIS Attach #3 Abort Htr
3ttbrgbt	0.217	0.012	(2.59+/-0.09)e2	-0.14 +/- 0.28	K	TT at Bearing B, Abort Htr TSC4
3tthrc1t	0.223	0.013	(2.68+/-0.09)e2	-0.21 +/- 0.29	K	TT at HRC Bipod Attach #1
3tthrc2t	0.203	0.013	(2.73+/-0.09)e2	-0.23 +/- 0.29	K	TT at HRC Bipod Attach #2
3tthrc3t	0.139	0.004	(2.68+/-0.03)e2	0.07 +/- 0.09	K	TT at HRC Bipod Attach #3
3ttralat	0.295	0.009	(2.47+/-0.06)e2	-0.02 +/- 0.17	K	TT at Rail A, Abort Htr TSC3
3ttralct	0.154	0.006	(2.66+/-0.04)e2	0.07 +/- 0.13	K	TT at Rail C, Abort Htr TSC3
3ttvalvt	0.395	0.011	(2.54+/-0.08)e2	0.01 +/- 0.24	K	TT at Vent Valve, Abort Htr TSC7
