MTA Monitoring Report 02/06/26 - 02/12/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (802,665) (910,239) (178,149) (803,225) (665,25) (526,66) (726,537) (837,378) (680,391) (21,95) (811,637)     (849,169) (1000,214) (335,412)
Flickering Warm Pixels (171,937) (427,125) (104,31) (99,899) (931,553) (394,80) (617,159)   (161,206) (357,303) (367,511) (282,385) (369,376) (263,317) (670,387)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           512 1022 510   1022 512
Flickering Warm column candidates

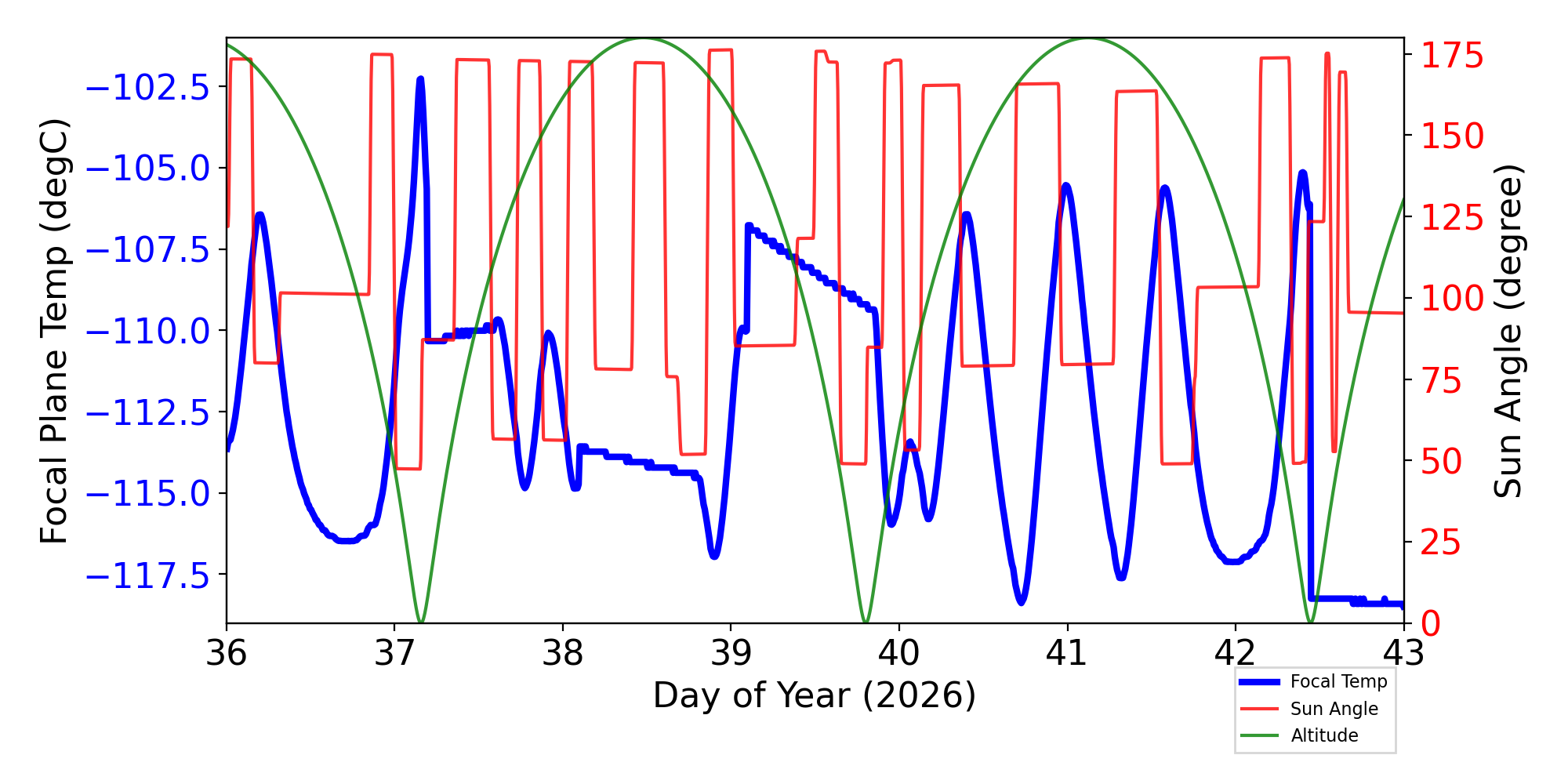

ACIS Focal Plane Temperature

For this period, 7 peaks are observed.

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

9 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 02/06/26 02/07/26 02/08/26 02/09/26 02/10/26 02/11/26 02/12/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AFTBLKHDT             309.02 (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI     (-3.43)     (-3.39)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI     (-3.43)     (-3.43)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR   (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
ESAMYI (0.06)   (0.06)     (0.06)   (5.63)
30.15		 (5.3)
33.0		 AMPS/A -Y CURRENT
ESAPYI (0.14)   (0.14)     (0.14)   (5.54)
30.15		 (5.2)
33.0		 AMPS/A +Y CURRENT
HRMAAVG (303.81)             (306.0)
308.0		 (305.0)
309.0		 KAVG OF HRMA METRICS
MZOBACONE 312.94   309.89 308.74 310.81 312.65 315.62 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 304.42   302.10   302.13 303.64   (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG   304.58 307.36 305.37 307.55     (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.54 4.94 4.98 5.02 5.02 4.78 4.59 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 308.80         308.06 311.52 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCYZ_RW1 (276.07)             (288.15)
363.15		 (278.15)
404.15		 KRWA -1 TEMP (RWA CRNR COMP)
TCYZ_RW6 (277.17)             (288.15)
363.15		 (278.15)
404.15		 KRWA -6 TEMP (RWA CRNR COMP)
TFTERANGE 46.40 46.10 47.69 45.93 47.93 48.47 48.91 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

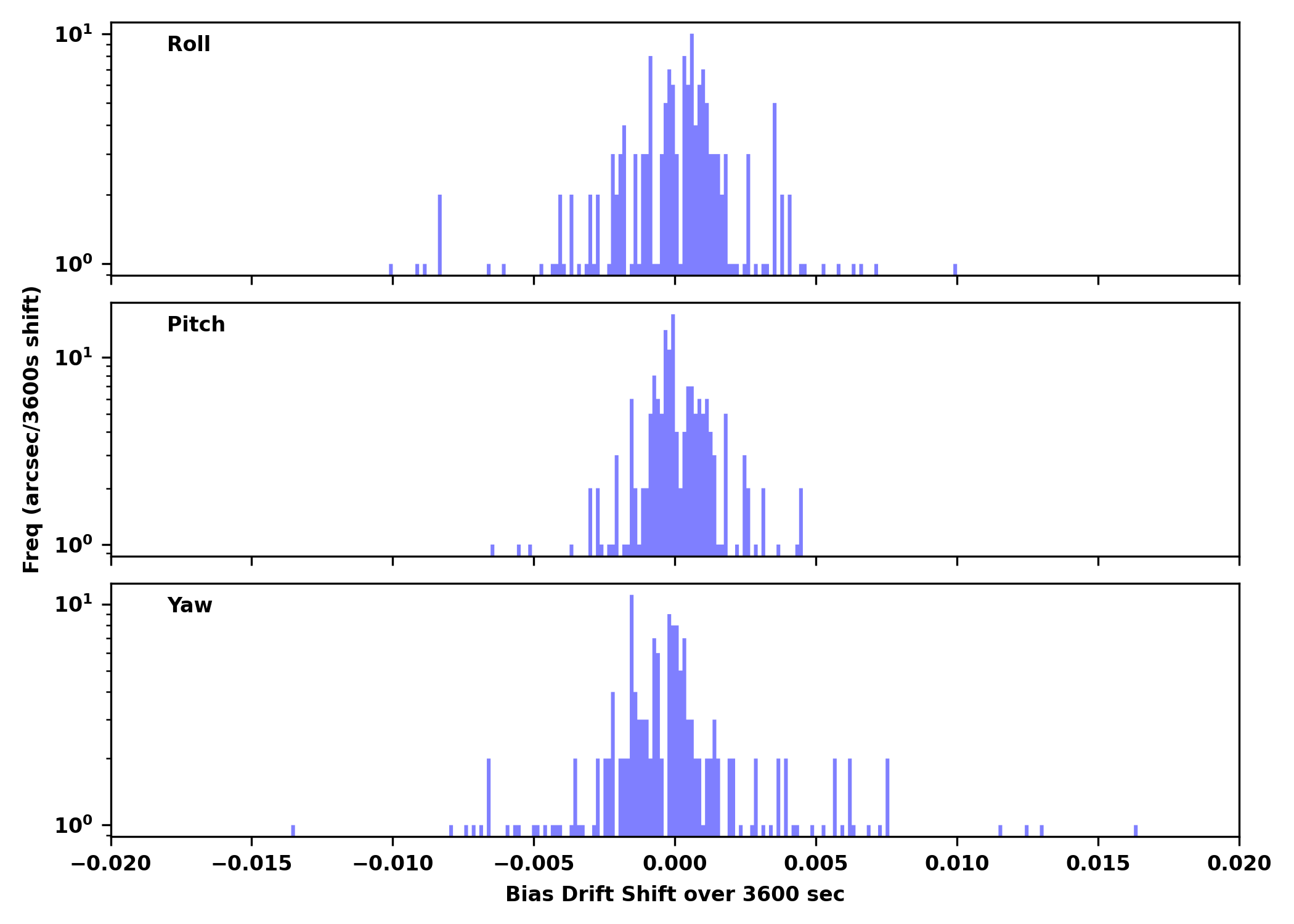

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
30316 ACIS-0123 NONE Perseus cluster OK OK
32144 ACIS-567 NONE ZwCl 0857.9+2107 OK OK
32145 ACIS-567 NONE ZwCl 0857.9+2107 OK OK
31431 ACIS-678 NONE PGC101434 OK OK
32149 ACIS-678 NONE PGC101434 OK OK
30399 ACIS-567 NONE ZwCl 0857.9+2107 OK OK
32143 ACIS-0123 NONE [vD2023]1 OK OK
32140 ACIS-67 NONE G 132-50 OK OK
32146 ACIS-567 NONE ZwCl 0857.9+2107 OK OK
32139 ACIS-0123 NONE RMJ093723.8+125312.3 OK OK
30494 ACIS-0123 NONE CMZ Molecular Cloud OK OK
32141 ACIS-0123 NONE BOSS1348 OK OK
31079 ACIS-456789 HETG GS 1354-64 CC/NA OK
32148 ACIS-0123 NONE CMZ Molecular Cloud OK OK
30065 ACIS-0123 NONE Center of COSMOS-Web OK OK
32154 ACIS-0123 NONE Center of COSMOS-Web OK OK
29797 ACIS-5678 HETG Cir X-1 CC/NA OK
31430 ACIS-678 NONE PGC031877 OK OK
32153 ACIS-5678 HETG Cir X-1 CC/NA OK
31163 ACIS-3678 NONE GRB 221009A OK OK
30850 ACIS-0123 NONE G292.0+1.8 OK OK
32152 ACIS-67 NONE Mrk704 OK OK
30295 ACIS-01236 NONE Perseus cluster OK OK
32150 ACIS-67 NONE SDSSJ093034.43+204416.6 OK OK
30298 ACIS-0123 NONE Perseus cluster OK OK

Trending

This week's focus is Ground Computations

Last reported on Nov 27.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
1dppwra -0.5030.00633.45 +/- 6.070.04 +/- 0.13WDPA POWER A
1dppwrb -0.5390.00729.16 +/- 7.01-0.21 +/- 0.17WDPA POWER B

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
flexadif 0.1170.00765.47 +/- 5.47-0.01 +/- 0.07KDIFF FLEX A & SET
flexbdif 0.2640.00661.84 +/- 4.94-0.03 +/- 0.08KDIFF FLEX B & SET
flexcdif 0.1650.01274.16 +/- 9.000.08 +/- 0.23KDIFF FLEX C & SET

If you have any questions, please contact: swolk@head.cfa.harvard.edu
