MTA Monitoring Report 05/15/26 - 05/21/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels     (178,149) (526,66) (803,225)     (233,102) (357,303) (877,408) (263,317) (1000,214) (849,169) (884,31) (670,387) (335,412)
Flickering Warm Pixels (786,117) (171,937) (802,665) (910,239) (427,125) (837,378) (726,537) (99,899) (665,25) (104,31) (811,637) (680,391) (21,95) (758,244) (879,121) (247,364) (419,163) (166,738) (233,81) (226,202) (367,511) (439,452) (554,484) (669,577) (282,385) (233,79) (270,726) (369,376) (641,669) (383,586) (233,227) (226,564) (233,429) (161,206) (258,797) (728,340) (80,130)   (893,490) (666,165) (881,53) (295,978) (34,645) (139,109) (541,41) (275,393) (332,324) (838,239) (326,978) (597,187) (333,466) (447,769) (136,65) (178,399) (675,304) (182,474) (749,477) (982,129) (40,49) (675,52)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           510 1022 512   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

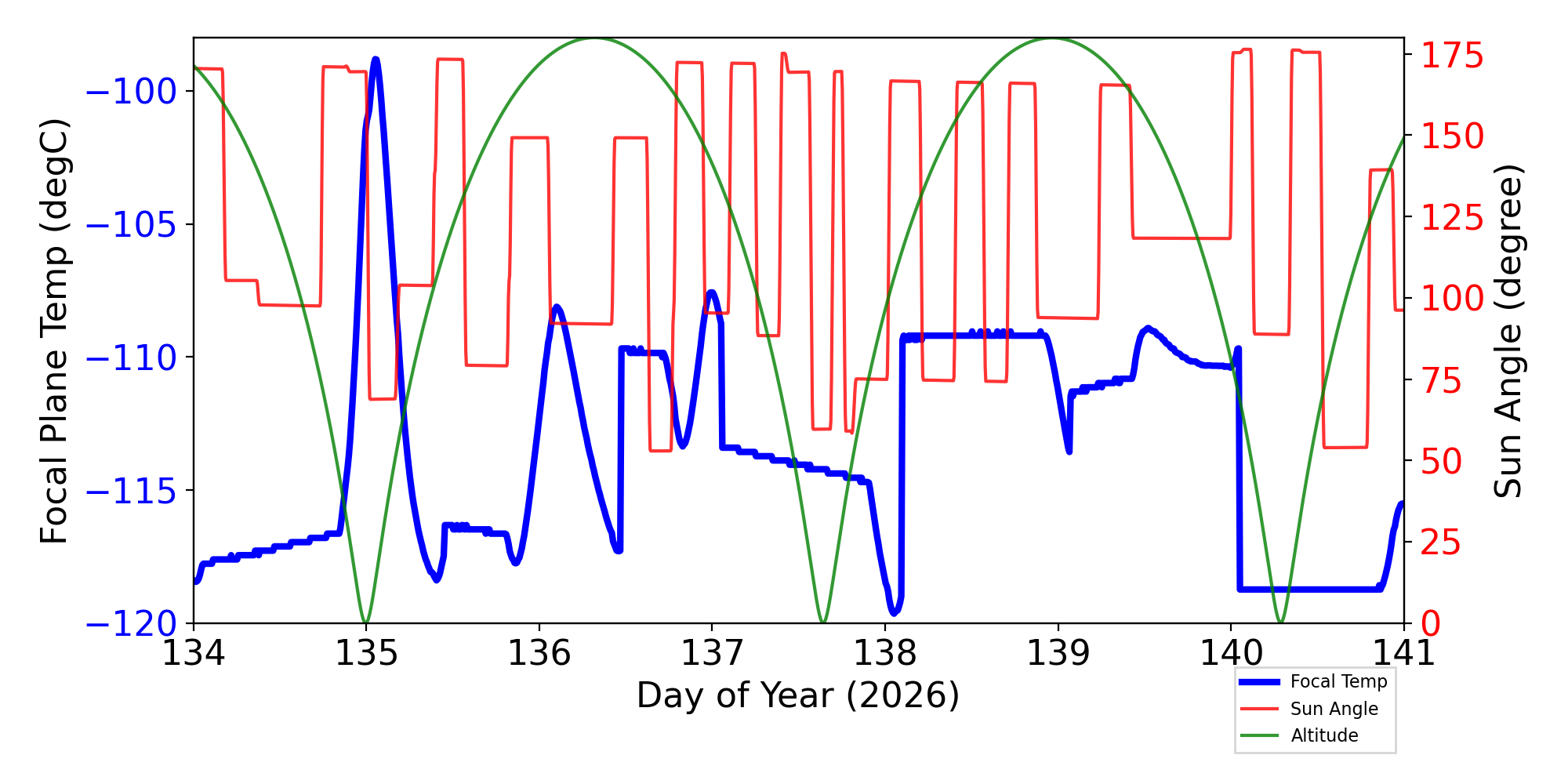

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

12 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 05/15/26 05/16/26 05/17/26 05/18/26 05/19/26 05/20/26 05/21/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
1CRBT           677.96   (136.15)
183.15		 (131.15)
193.15		 KCOLD RADIATOR TEMP. B
1CRBTC           (50.92)   (136.15)
183.15		 (131.15)
193.15		 CCOLD RADIATOR TEMP. B
AFTBLKHDT             308.11 (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI (-3.39) (-3.31) (-3.39)   (-3.39) (-3.39)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD3TQI   (-3.39)           (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 3 TORQUE CURRENT
AWD4TQI   (-3.43)           (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 4 TORQUE CURRENT
AWD6TQI (-3.35) (-3.43) (-3.43)   (-3.43) (-3.39)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CALPALV           (120.00)   (126.0)
128.0		 (125.0)
129.0		 VCal Pulser Amplitude
CTXBPWR (0.00)   (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
ELBI           66.09   (20.0)
60.0		 (13.0)
66.0		 AMPLOAD BUS CURRENT (HIGH RANGE)
MZOBACONE 311.51 313.24 308.84 308.69 310.28 310.79 314.51 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 303.25 304.49     302.88 302.66 305.52 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG       305.62       (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.81 4.59 4.80 4.74 4.74 4.64 4.56 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE   309.05         310.25 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TFTERANGE 48.10 48.68 46.44 46.74   46.78   (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP
TSCTSF3       (268.79)   (268.79)   (278.15)
359.15		 (269.15)
483.15		 KSC-TS FITTING -3 TEMP


IRUs

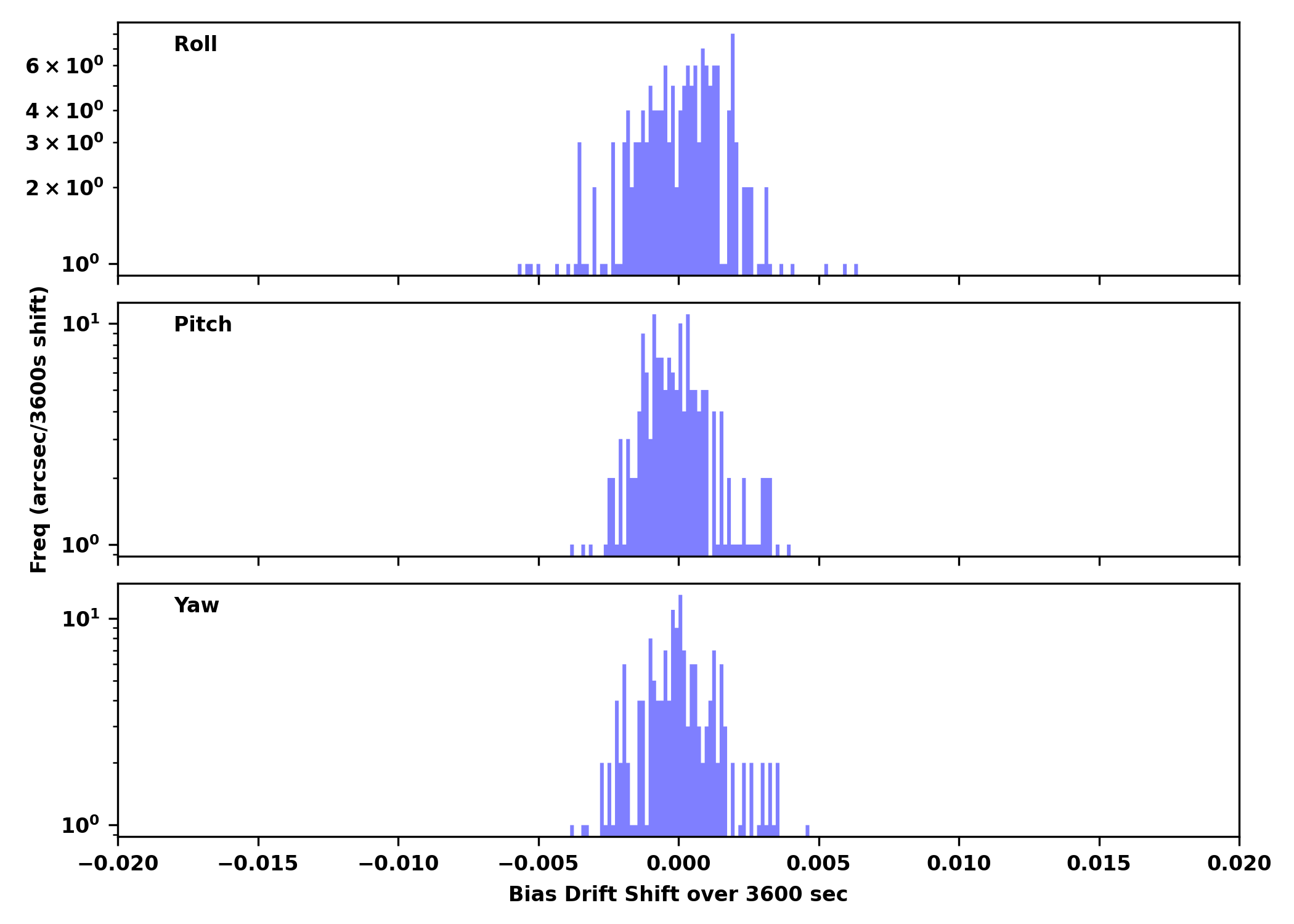

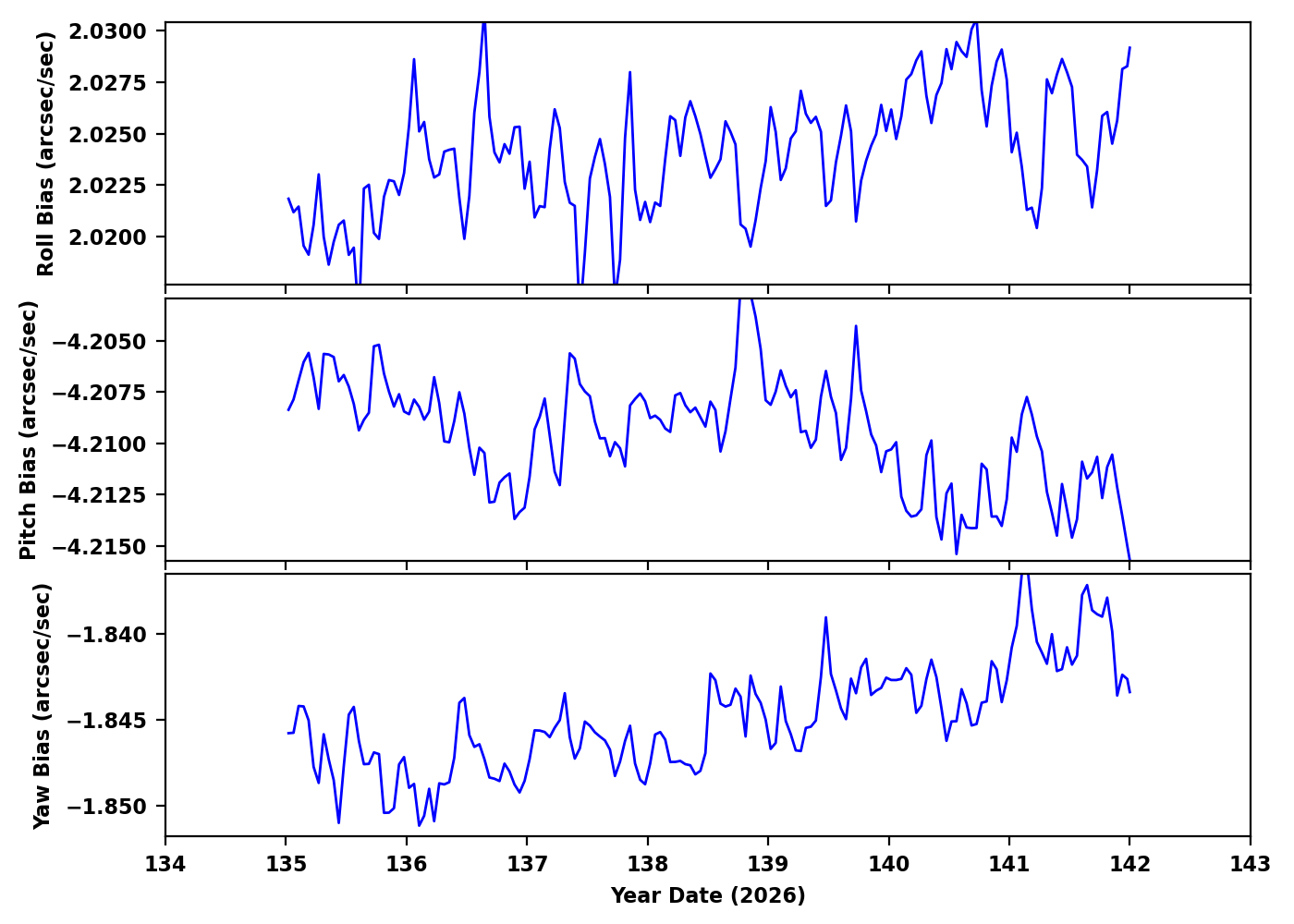

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
31993 ACIS-7 HETG MCG-5-23-16 OK/NA OK
32338 ACIS-0123 NONE MOOJ1514-1259 OK OK
30435 ACIS-012367 NONE PG 1553+113 OK OK
32251 ACIS-67 NONE J0952+50 OK OK
30100 ACIS-456789 HETG AN UMa OK/NA OK
32344 ACIS-01236 NONE PG 1553+113 OK OK
32345 ACIS-0123 NONE MOOJ1514-1259 OK OK
32342 ACIS-456789 HETG TV Cassiopeia OK/NA OK
32337 ACIS-67 NONE AT2026fgk OK OK
32346 ACIS-0123 NONE MOOJ1514-1259 OK OK
32340 ACIS-0123 NONE Center of COSMOS-Web OK OK
30394 ACIS-567 NONE ZwCl 0857.9+2107 OK OK
30191 ACIS-67 NONE NGC5728 OK OK
32355 ACIS-567 NONE ZwCl 0857.9+2107 OK OK
31883 ACIS-567 NONE ZwCl 0857.9+2107 OK OK
32353 ACIS-67 NONE NGC5728 OK OK
32352 ACIS-67 NONE NGC5728 OK OK
30206 ACIS-67 NONE NGC5728 OK OK
30247 ACIS-0123 NONE Center of COSMOS-Web OK OK
29879 ACIS-2567 NONE SDSS J155636.40+415250.5 OK OK
31395 HRC-I NONE SNR G21.5-0.9 OK OK
30086 ACIS-456789 HETG TV Cassiopeia OK/NA OK
31372 ACIS-3 NONE E0102-72.3 OK OK
31373 ACIS-67 NONE E0102-72.3 OK OK
32354 ACIS-67 NONE NGC5728 OK OK
31377 ACIS-3 NONE E0102-72.3 OK OK

Trending

This week's focus is PCAD

Last reported on Mar 05.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
afsspc2von0.0034.278e-043.51 +/- 0.14-(3.39+/-4.28)e-5VFSS POWER CONV 2 VOLTAGE
 off0.0015.434e-040.01 +/- 0.14(0.00+/-0.00)e0
airu2g1ion-0.4840.008(1.01+/-0.06)e2-0.07 +/- 0.02mAIRU-2 GYRO
 off-0.2420.0749.74 +/- 4.62-0.17 +/- 0.37
airu2g2ion0.4600.035(1.06+/-0.23)e20.09 +/- 0.06mAIRU-2 GYRO
 off-0.1960.0769.74 +/- 4.74-0.12 +/- 0.33
airu2g2ton-0.0610.008(3.41+/-0.05)e2(6.87+/-57.16)e-5KIRU-2 GYRO
 off0.0710.045(2.93+/-0.03)e2-0.03 +/- 0.02

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
aogyrct1 -0.3671.00314.34 +/- 832.97-15.40 +/- 10.75CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 1
aogyrct2 -2.7201.6096.79 +/- 1336.53-16.40 +/- 25.00CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 2
aogyrct3 2.8632.945-20.30 +/- 2446.0717.01 +/- 33.89CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 3
aogyrct4 0.3011.146-33.34 +/- 951.79-1.90 +/- 6.11CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 4

If you have any questions, please contact: swolk@head.cfa.harvard.edu
