MTA Monitoring Report 05/22/26 - 05/28/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels     (526,66) (178,149)     (282,385) (263,317) (877,408) (369,376) (233,102) (161,206) (728,340) (357,303)   (335,412)
Flickering Warm Pixels (786,117) (171,937) (910,239) (427,125) (726,537) (104,31) (665,25) (803,225) (99,899) (811,637) (21,95) (879,121) (363,19) (247,364) (226,564) (554,484) (233,79) (439,452) (233,81) (641,669) (258,797) (226,202) (669,577) (270,726) (233,227) (367,511) (383,586) (670,387) (884,31) (287,164) (357,29) (849,169) (1000,214)   (838,239) (295,978) (139,109) (326,978) (333,466) (332,324) (136,65) (597,187) (182,474) (275,393) (447,769) (881,53) (541,41) (34,645) (675,52) (951,382) (982,129) (749,477) (697,773) (17,120) (40,49)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           512 510 1022   512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 5 peaks are observed.

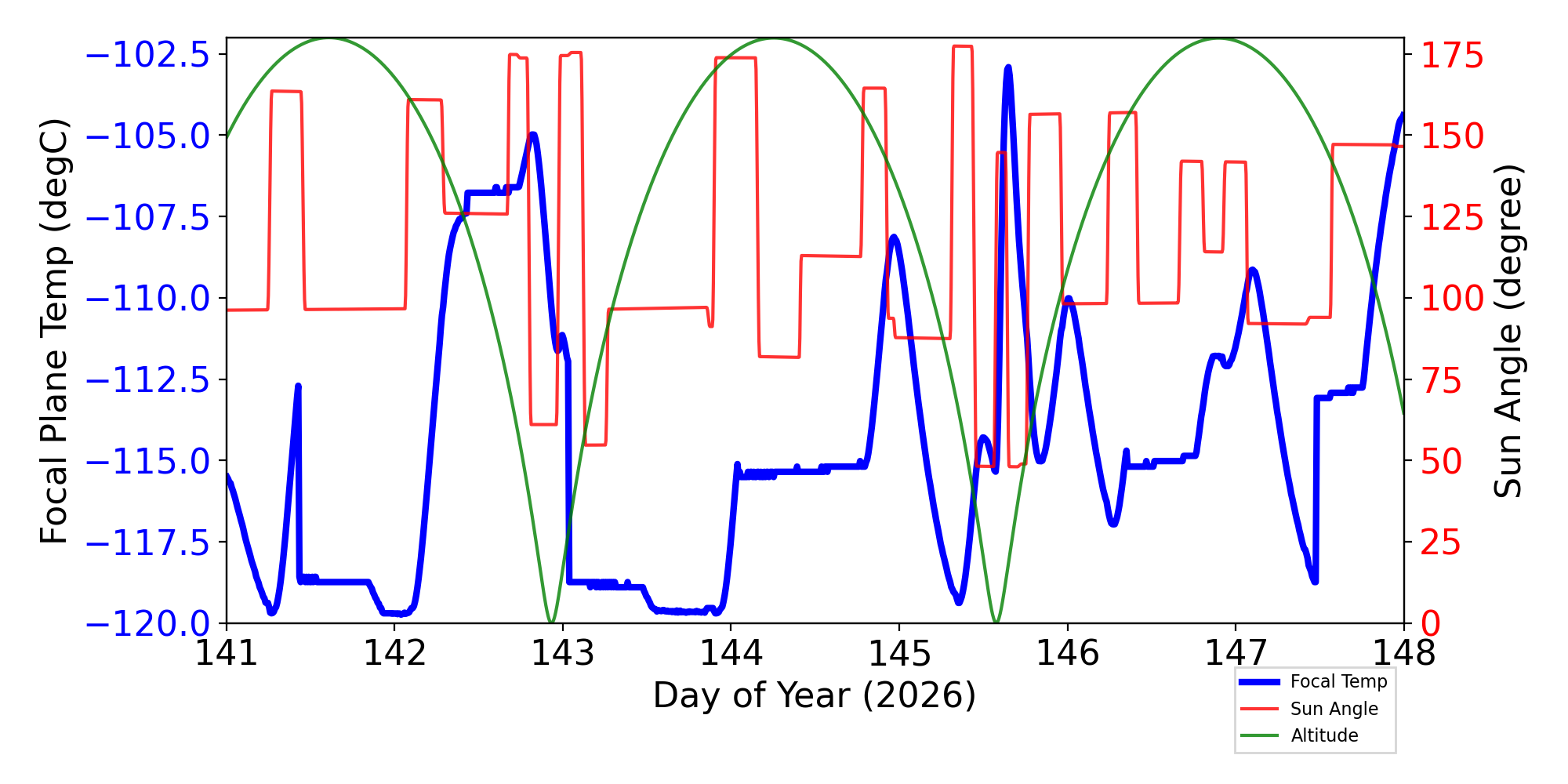

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

8 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 05/22/26 05/23/26 05/24/26 05/25/26 05/26/26 05/27/26 05/28/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
1CRBT 677.96 677.96 677.96 677.96   677.96 677.96 (136.15)
183.15		 (131.15)
193.15		 KCOLD RADIATOR TEMP. B
1CRBTC (45.80) (71.48) (84.38) (50.92)   (63.76) (63.76) (136.15)
183.15		 (131.15)
193.15		 CCOLD RADIATOR TEMP. B
AFTBLKHDT 308.11 308.32       309.94   (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI (-3.39)     (-3.39)       (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI (-3.43)     (-3.43) (-3.43)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00) (0.00)   (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
HRMAAVG           (304.45) (303.92) (306.0)
308.0		 (305.0)
309.0		 KAVG OF HRMA METRICS
MZOBACONE 314.52 314.59 312.76 314.18 311.68   310.36 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 305.65 305.65 304.56 305.33 303.78   303.18 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBADIAGRAD 4.33 4.71 4.83 4.60 4.51 4.49 4.54 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 310.43 310.47 309.06 309.95   312.16   (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TFTERANGE 48.84 48.70 49.09 48.21     47.66 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

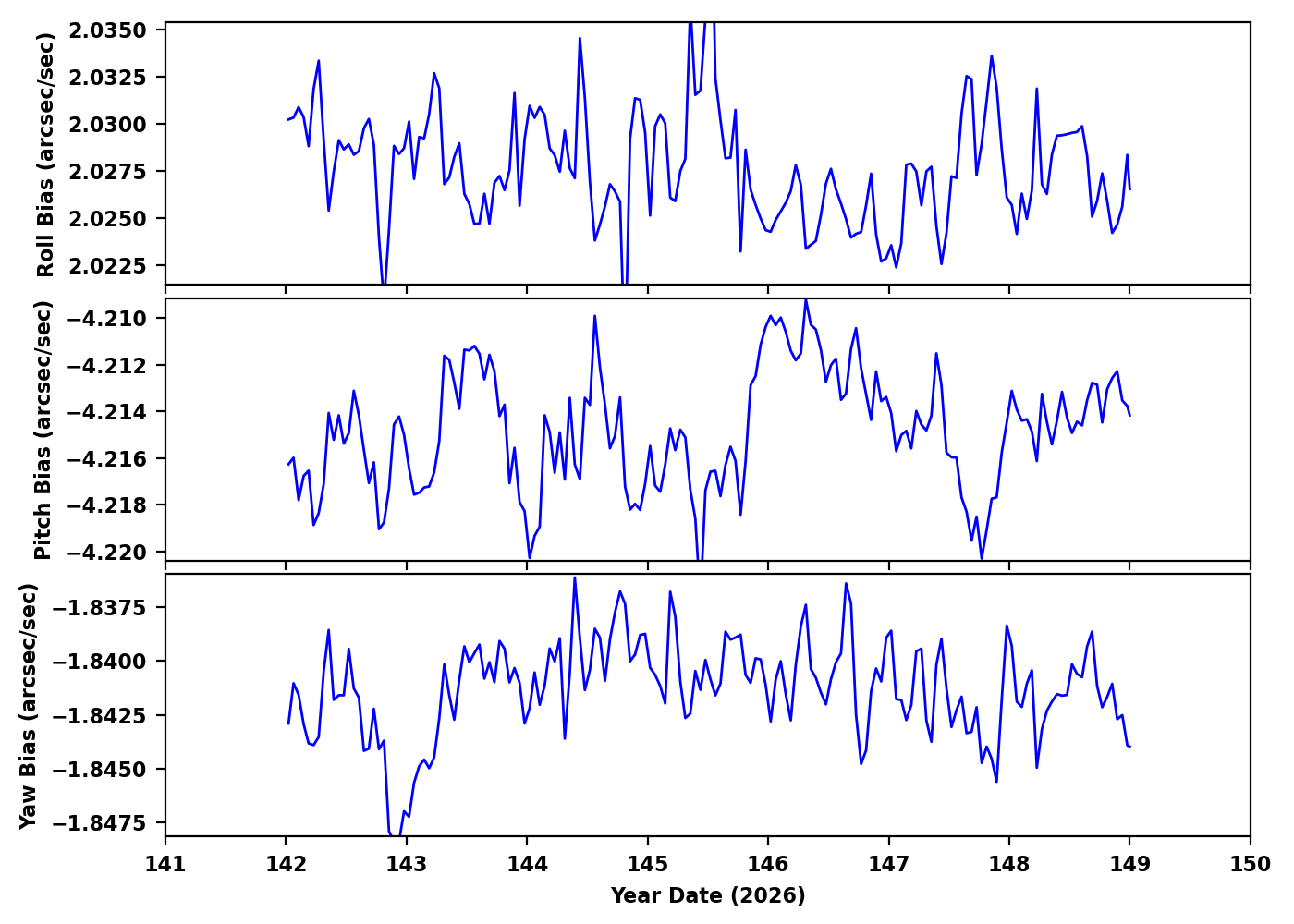

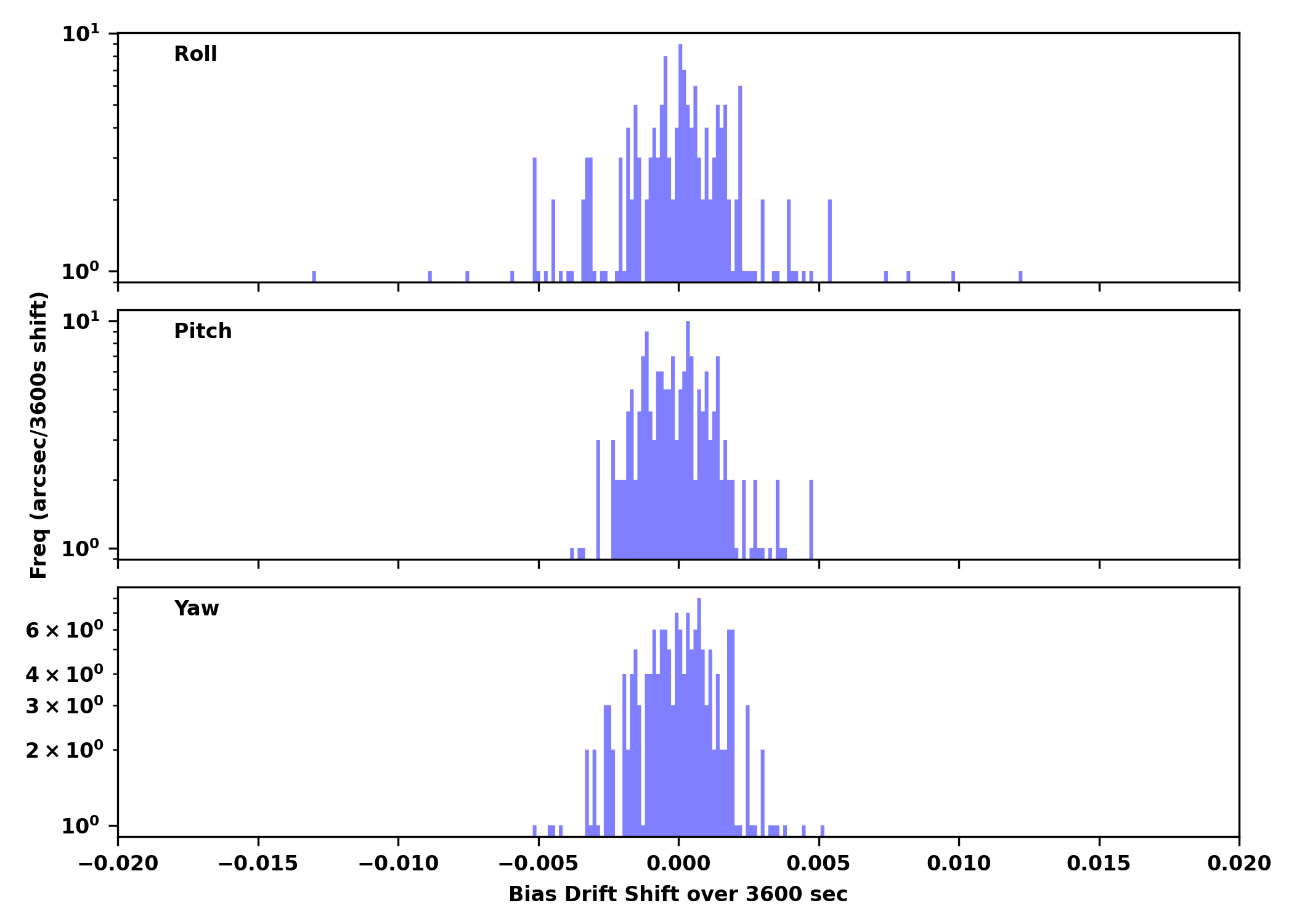

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
31377 ACIS-3 NONE E0102-72.3 OK OK
32349 ACIS-678 NONE MASTER J1449-3244 OK OK
30511 ACIS-0123 NONE BOSS1348 OK OK
32351 ACIS-456789 HETG TV Cassiopeia OK/NA OK
31222 ACIS-3678 NONE TDE2023mfm OK OK
32350 ACIS-67 NONE 2RXS J155154.5-262208 OK OK
31282 ACIS-5678 NONE SDSS J094314.26+102348.7 OK OK
30166 ACIS-3678 NONE NGC4293 OK OK
29759 ACIS-678 NONE 1eRASS J112950.4+354703 OK OK
32348 ACIS-5678 NONE 2MASX J16125120-0521173 OK OK
30269 ACIS-0123 NONE Center of COSMOS-Web OK OK
30131 ACIS-67 NONE SNR G1.9+0.3 OK OK
32360 ACIS-67 NONE SNR G1.9+0.3 OK OK
31374 ACIS-67 NONE E0102-72.3 OK OK
31375 ACIS-67 NONE E0102-72.3 OK OK
30417 ACIS-0123 NONE Abell 3558 SE OK OK
32364 ACIS-0123 NONE Abell 3558 SE OK OK
30097 ACIS-0123 NONE [MWE2019] 1-435 OK OK
30430 ACIS-0123 NONE Abell 2255 OK OK
30437 ACIS-0123 NONE PG 1553+113 OK OK
30202 ACIS-67 NONE NGC5728 OK OK
32361 ACIS-67 NONE NGC5728 OK OK
30398 ACIS-5678 NONE ZwCl 0857.9+2107 OK OK

Trending

This week's focus is Ground Computed Gradients

Last reported on Mar 12.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hcapgrd1 -1.0410.3613.84 +/- 245.60(1.10+/-1.70)e-4KRT100-RT101: HRMA CAP circum
hcapgrd2 -1.0190.3333.76 +/- 226.58(6.20+/-4.65)e-4KRT100-RT104: HRMA CAP ridial
hcapgrd3 0.2050.106-0.85 +/- 71.74-(2.08+/-2.15)e-4KRT101-RT102: HRMA CAP circum
hcapgrd4 0.0220.041-0.08 +/- 27.91(5.84+/-4.46)e-4KRT101-RT104: HRMA CAP ridial
hcapgrd5 0.2240.066-0.64 +/- 44.92(1.30+/-2.39)e-4KRT102-RT103: HRMA CAP circum
hcapgrd6 -0.2540.0990.88 +/- 67.14(5.56+/-5.70)e-4KRT102-RT105: HRMA CAP ridial
hcapgrd7 -0.4300.1601.49 +/- 109.09-(3.09+/-16.99)e-5KRT103-RT101: HRMA CAP circum

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hfapgrd1 0.7870.268-2.89 +/- 182.30-(6.51+/-141.10)e-6KRT1-RT2: HRMA Forward Aperture Plate
hfapgrd2 0.0990.043-0.34 +/- 29.280.01 +/- 0.00KRT1-RT4: HRMA Forward Aperture Plate
hfapgrd3 -0.5940.1912.20 +/- 130.19-(1.00+/-1.84)e-4KRT2-RT3: HRMA Forward Aperture Plate
hfapgrd4 -0.1940.0710.77 +/- 47.930.00 +/- 0.00KRT2-RT5: HRMA Forward Aperture Plate
hfapgrd5 -0.1930.0820.69 +/- 56.01(1.34+/-14.73)e-5KRT3-RT1: HRMA Forward Aperture Plate
hfapgrd6 0.2800.087-1.03 +/- 59.420.01 +/- 0.00KRT3-RT6: HRMA Forward Aperture Plate
hfapgrd7 0.4940.159-1.78 +/- 107.89-(1.83+/-21.83)e-5KRT4-RT5: HRMA Forward Aperture Plate
hfapgrd8 -0.1190.0390.41 +/- 26.20(3.01+/-26.16)e-5KRT5-RT6: HRMA Forward Aperture Plate
hfapgrd9 -0.3750.1251.37 +/- 84.77(4.87+/-11.06)e-5KRT6-RT4: HRMA Forward Aperture Plate

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hsstrtgrd1 12.6744.381-54.98 +/- 3418.76-0.00 +/- 0.02KRT75-RT76: Spacecraft Struts
hsstrtgrd2 -0.9143.070-1.71 +/- 2394.620.01 +/- 0.02KRT76-RT77: Spacecraft Struts
hsstrtgrd3 -24.9569.88297.97 +/- 7711.49-0.01 +/- 0.01KRT77-RT78: Spacecraft Struts
hsstrtgrd4 7.7093.222-24.29 +/- 2513.98-0.02 +/- 0.02KRT78-RT79: Spacecraft Struts
hsstrtgrd5 9.4842.770-32.57 +/- 2162.300.04 +/- 0.02KRT79-RT80: Spacecraft Struts
hsstrtgrd6 -3.9971.72715.59 +/- 1347.55-(6.01+/-38.95)e-4KRT80-RT75: Spacecraft Struts

If you have any questions, please contact: swolk@head.cfa.harvard.edu
