MTA Monitoring Report 07/10/26 - 07/16/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels	(786,117)	(427,125) (910,239)	(526,66) (837,378) (104,31) (178,149) (803,225)	(394,80) (811,637) (21,95)		(884,31) (670,387) (849,169)	(335,412)
Flickering Warm Pixels	(171,937) (283,278)	(787,181) (700,242) (370,70) (271,24)	(99,899) (206,757) (726,537) (665,25)	(680,391) (617,159) (931,553) (318,53)	(263,317) (369,376)	(1000,214)	(126,856)	(541,41) (275,393) (139,109) (136,65)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					512 510 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 9 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
189.95	-109.36	0.90
190.64	-102.03	0.85
191.18	-111.33	0.38
191.57	-110.97	0.38
191.91	-111.79	0.26
193.83	-112.70	1.36
194.08	-116.32	0.29
195.34	-112.75	0.48
195.75	-114.70	0.22

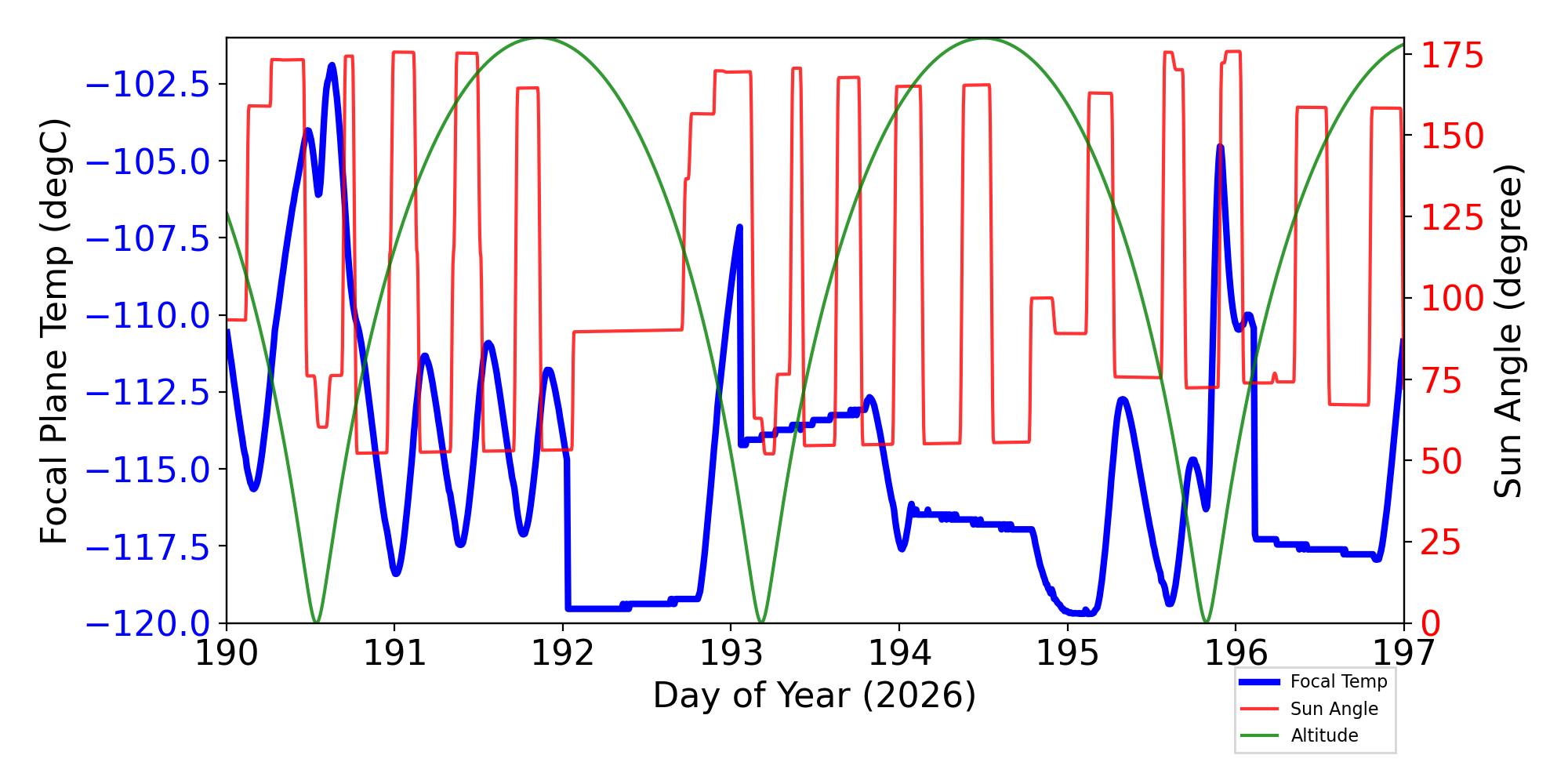

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

10 TSC moves this period

weekly average time/step	0.00138 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	07/10/26	07/11/26	07/12/26	07/13/26	07/14/26	07/15/26	07/16/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT	677.96	677.96	677.96	677.96	677.96	677.96	677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC	(50.92)	(7.62)	(5.09)	(27.93)	(12.69)	(30.48)	(17.76)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AWD1TQI		(-3.39)			(-3.39)			(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI		(-3.39)			(-3.47)			(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR			(0.00)	(0.00)	(0.00)		(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE		312.77		308.39	310.23	310.36	309.40	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG		303.77			301.79	301.89	301.28	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG	304.61	309.37		304.95				(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.31	4.81	4.56	4.74	4.78	4.76	4.76	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE		308.53						(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCYZ_RW1	(274.62)	(275.71)						(288.15) 363.15	(278.15) 404.15	K	RWA -1 TEMP (RWA CRNR COMP)
TCYZ_RW6	(275.34)	(276.44)	(276.07)	(277.17)				(288.15) 363.15	(278.15) 404.15	K	RWA -6 TEMP (RWA CRNR COMP)
TFTERANGE		47.66		46.68	47.27	45.92	46.25	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

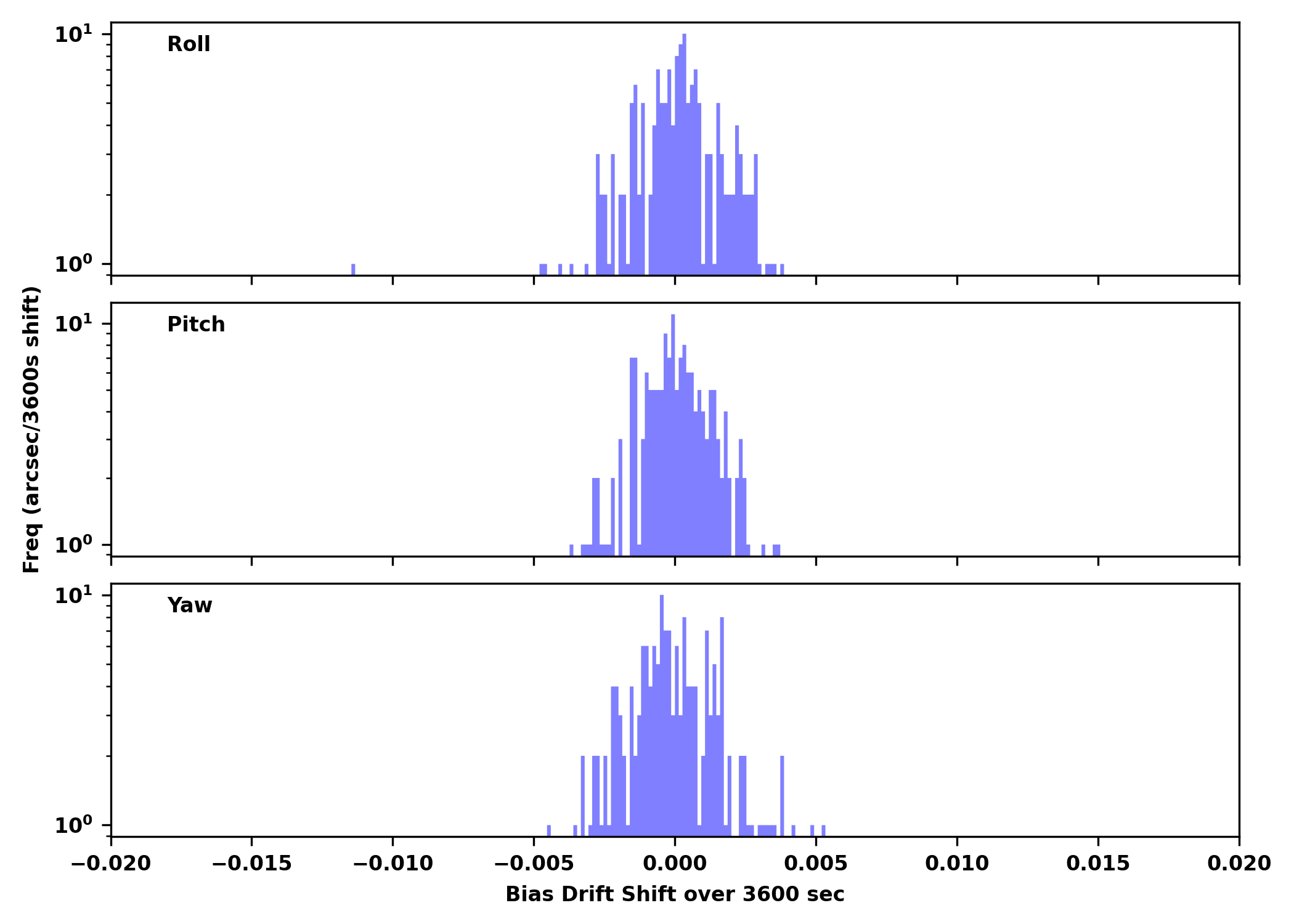

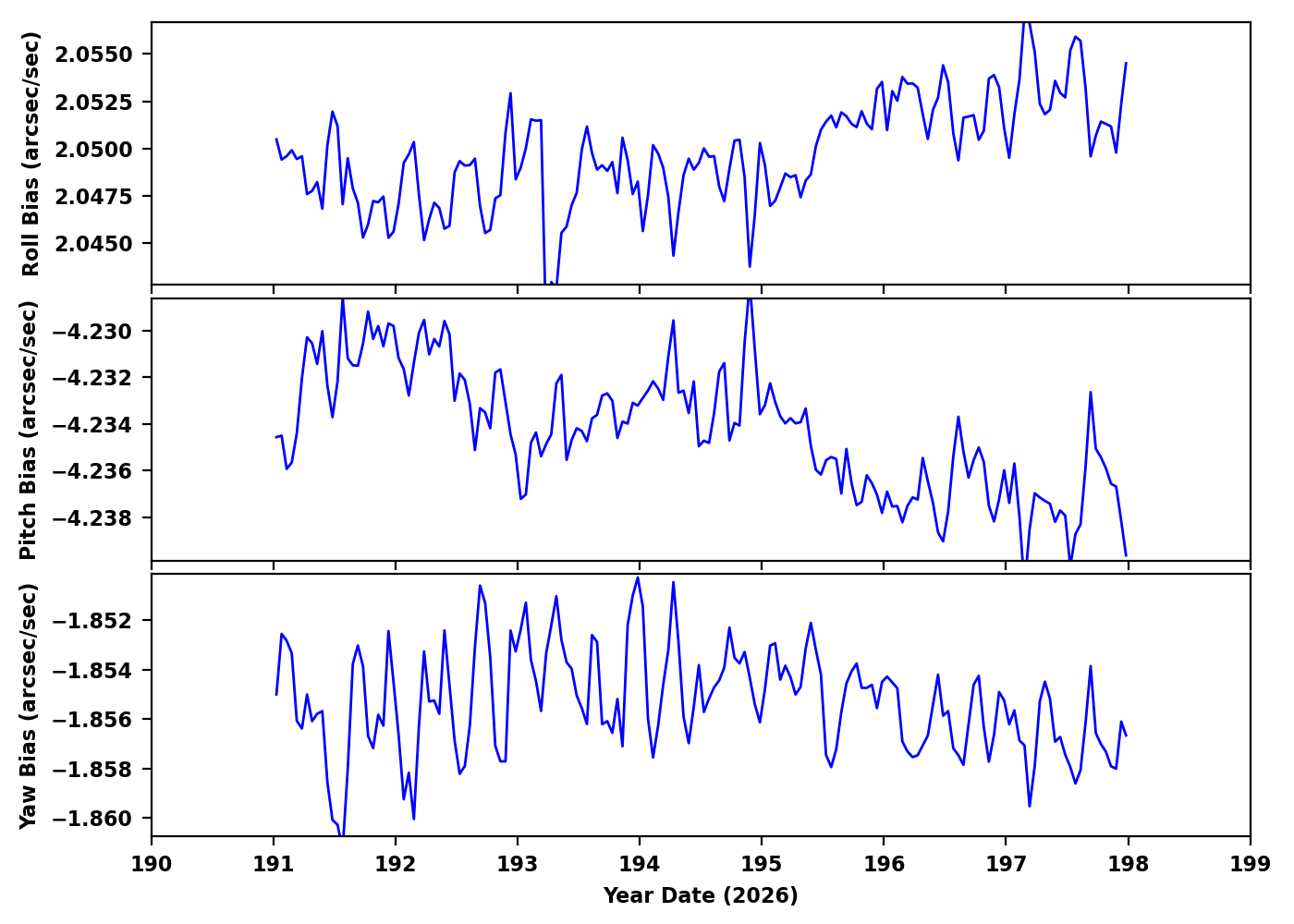

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30364	ACIS-01236	NONE	Perseus cluster E	OK	OK
31118	ACIS-67	NONE	ZTF J1858-2024	OK	OK
32427	ACIS-01236	NONE	Perseus cluster E	OK	OK
32418	ACIS-67	NONE	2MASX J20043345-1113515	OK	OK
32429	ACIS-67	NONE	ZTF J1858-2024	OK	OK
30365	ACIS-01236	NONE	Perseus cluster E	OK	OK
32428	ACIS-01236	NONE	Perseus cluster E	OK	OK
30027	ACIS-0123	NONE	Abell 98N	OK	OK
32422	ACIS-0123	NONE	Snake	OK	OK
32419	ACIS-67	NONE	PKS2008-159	OK	OK
30334	ACIS-01236	NONE	Perseus cluster N	OK	OK
32426	ACIS-01236	NONE	Perseus cluster N	OK	OK
31242	ACIS-67	NONE	PSO J308.0416-21.2339	OK	OK
30329	ACIS-0123	NONE	Perseus cluster N	OK	OK
32439	ACIS-67	NONE	PSO J308.0416-21.2339	OK	OK
32434	ACIS-0123	NONE	Perseus cluster N	OK	OK
30411	ACIS-0123	NONE	MACS J0018.5+1626	OK	OK
31338	ACIS-0123	NONE	V4641 Sgr N1	OK	OK
32417	ACIS-3678	NONE	EP260302a	OK	OK
29663	ACIS-3678	NONE	NGC4694	OK	OK
32408	ACIS-67	NONE	AT2026fgk	OK	OK
29998	ACIS-5678	NONE	ASASSN-14ko	OK	OK
31603	ACIS-67	NONE	Kes 73	OK	OK
29655	ACIS-3678	NONE	NGC4298	OK	OK
32441	ACIS-67	NONE	Kes 73	OK	OK
31607	ACIS-67	NONE	Kes 73	OK	OK
32431	ACIS-3678	NONE	NGC4298	OK	OK
32433	ACIS-3678	NONE	NGC4694	OK	OK
30330	ACIS-0123	NONE	Perseus cluster N	OK	OK
32442	ACIS-67	NONE	Kes 73	OK	OK

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
1dppwra		-0.491	0.005	33.38 +/- 6.03	0.04 +/- 0.12	W	DPA POWER A
1dppwrb		-0.536	0.007	29.03 +/- 7.03	-0.17 +/- 0.17	W	DPA POWER B

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
flexadif	0.117	0.007	65.47 +/- 5.47	-0.01 +/- 0.07	K	DIFF FLEX A & SET
flexbdif	0.264	0.006	61.84 +/- 4.94	-0.03 +/- 0.08	K	DIFF FLEX B & SET
flexcdif	0.165	0.012	74.16 +/- 9.00	0.08 +/- 0.23	K	DIFF FLEX C & SET
