- M&TA MONTHLY REPORT -

November 2005

OUTLINE

  1. Configuration
  2. ACIS
    1. Dose
    2. CTI
    3. Focal Plane Temperature
    4. Bad Pixels
    5. Background
    6. Acis Histogram
  3. HRC - Dose
  4. Gratings
    1. Focus
  5. SIM
  6. PCAD Gyro bias drift
  7. Radiation Zone Timing
  8. Quarterly Trends
  9. Spacecraft Motions

  • Configuration/Radiation Overview for November 2005

  • TOP

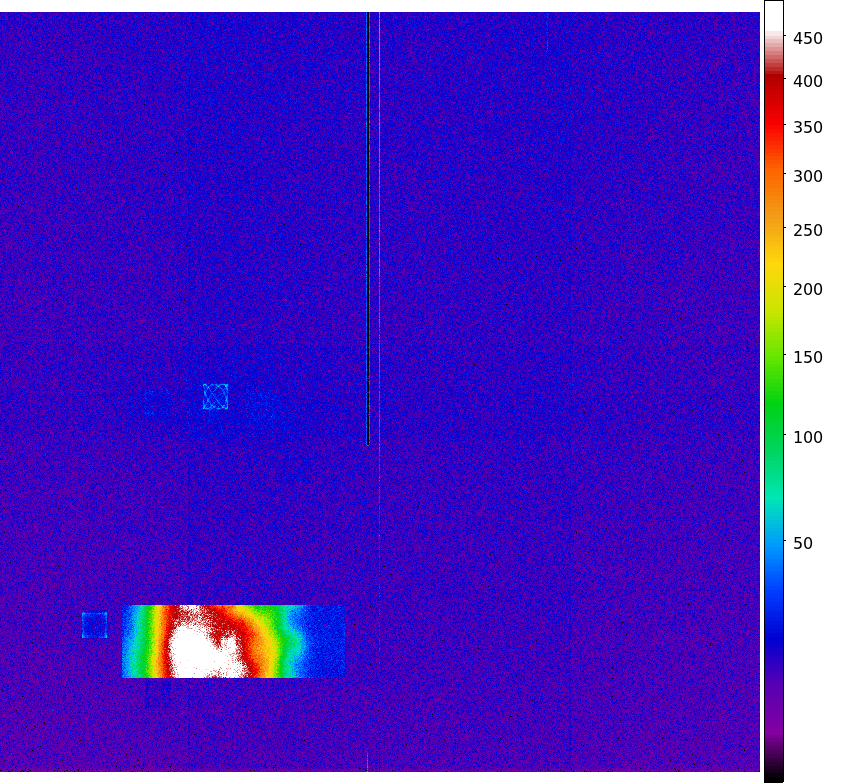

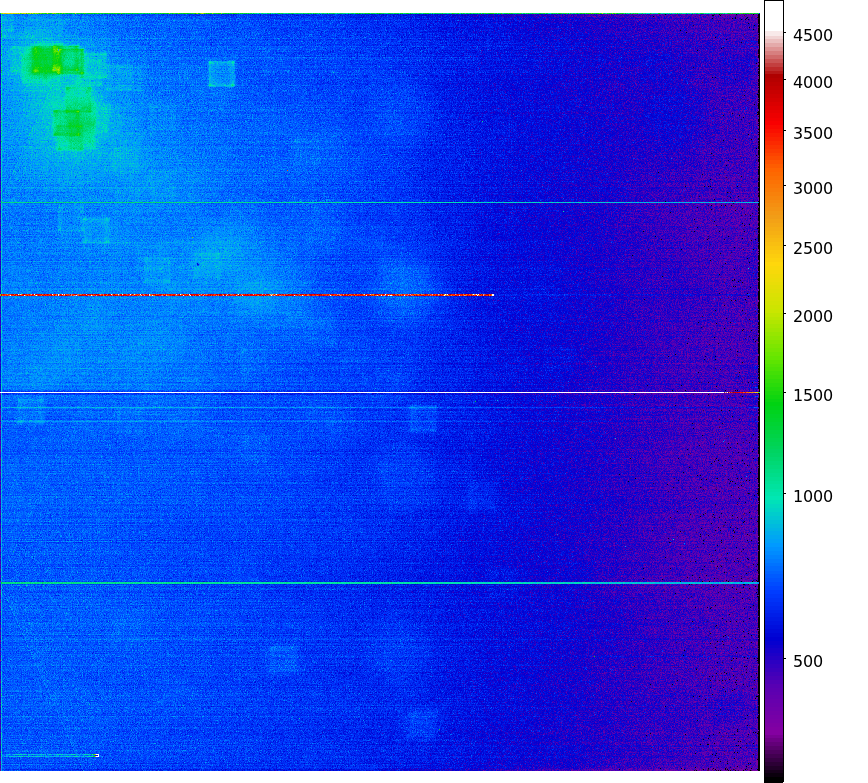

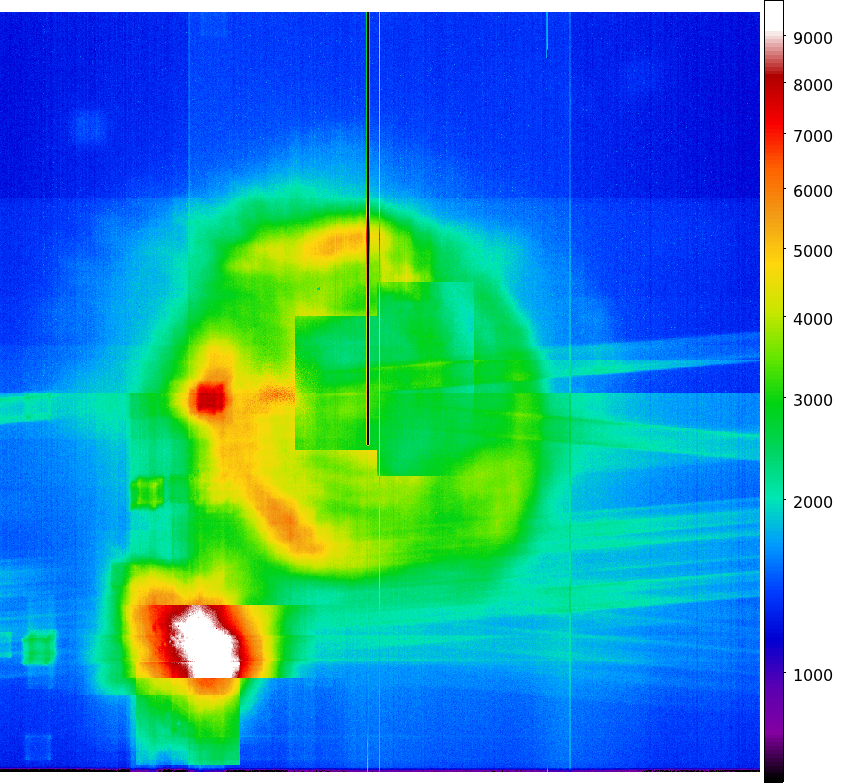

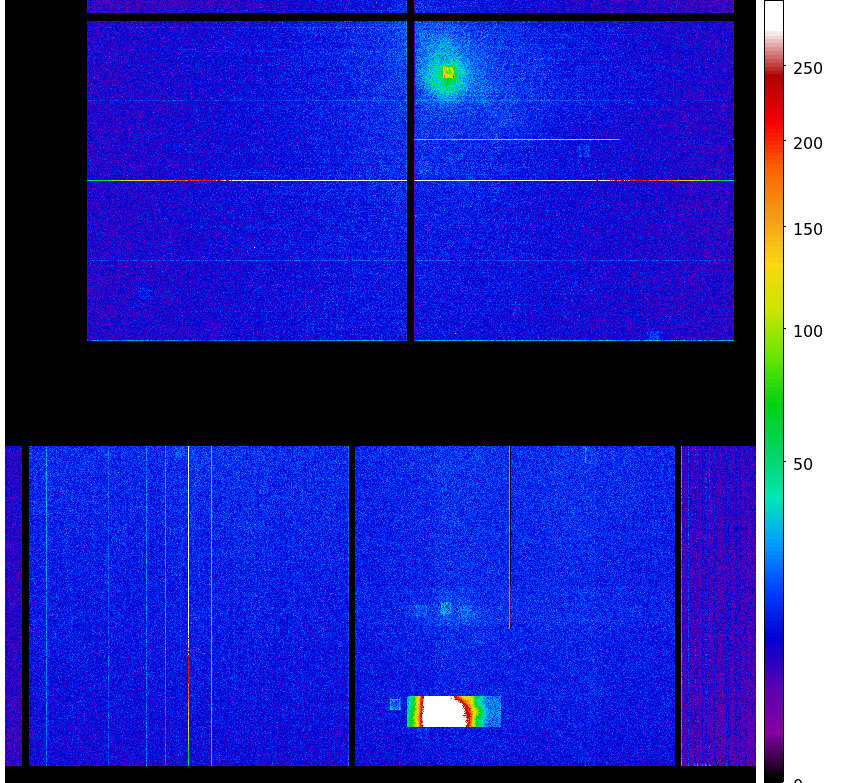

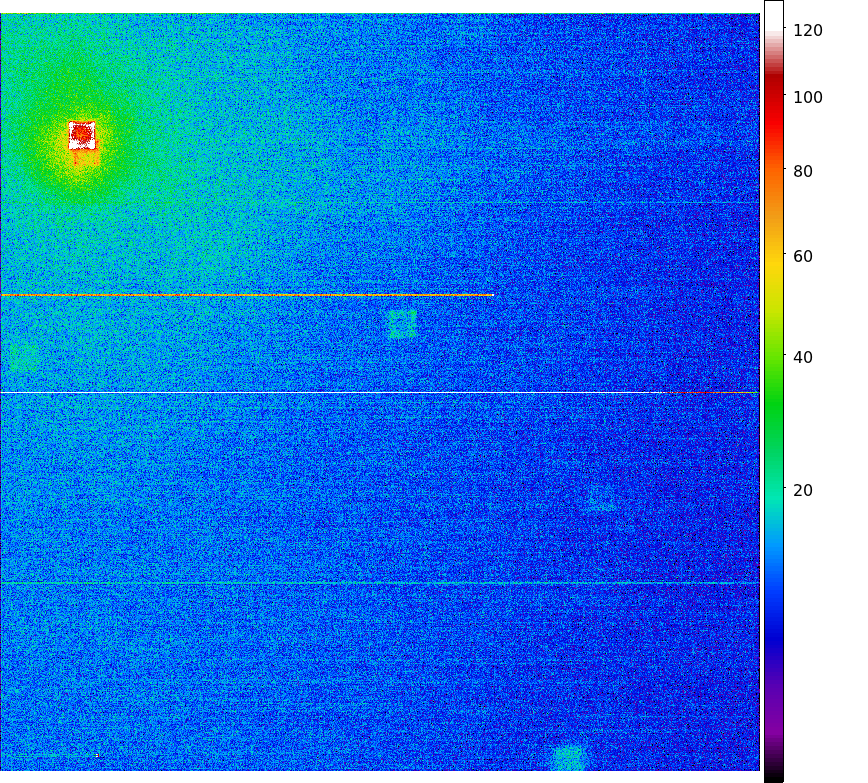

  • ACIS
  • TOP

  • HRC

  • Integrated Exposure Maps of Last 12 Months: HRCI
    Aug 2005 May 2005 Feb 2005 Nov 2004

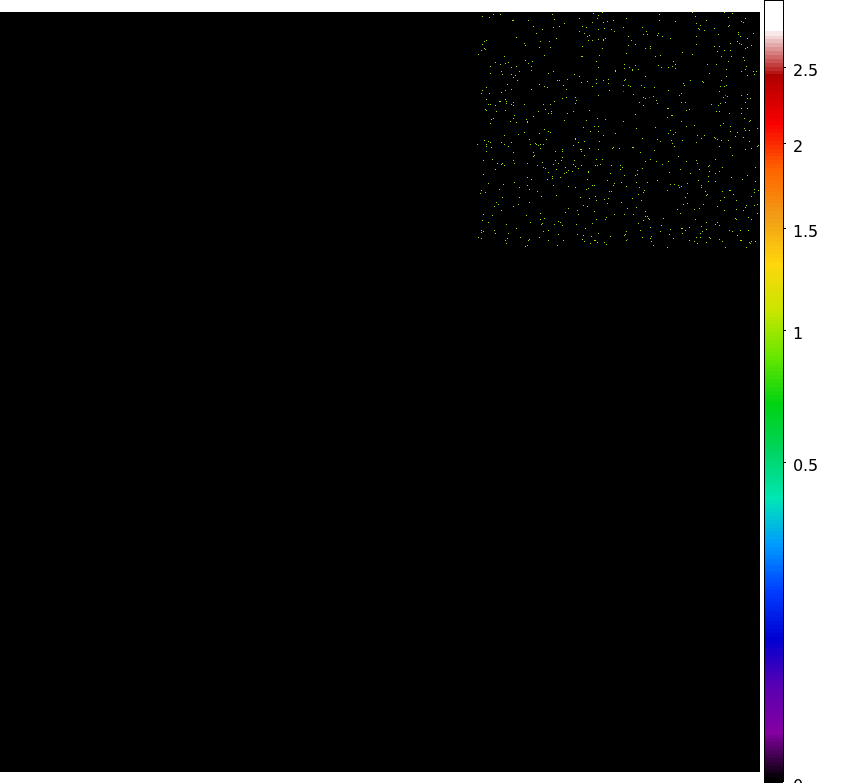

  • Integrated Exposure Maps of Last 12 Months: HRCS
    Aug 2005 May 2005 Feb 2005 Nov 2004

    TOP

  • Gratings
  • PCAD
  • TOP

  • Radiation Zone Timing

  • TOP


  • Quarterly Trends


    • Ephin Key Rate
      MSID MEAN RMS DELTA/YR DELTA/YR/YR UNITSDESCRIPTION
      SCE1300 1.826e+02 7.774e+02 -9.148e+02 -8.787e+03 E1300 sci coincidence counter
      SCE150 3.144e+04 1.081e+05 -7.842e+04 -2.088e+03 E150 sci coincidence counter
      SCE3000 1.511e+01 4.828e+01 -5.822e+01 -3.295e+02 E3000 sci coincidence counter
      SCE300 1.272e+04 5.775e+04 -3.226e+04 -3.736e+05 E300 sci coincidence counter

    • FAP Gradients
      MSID MEAN RMS DELTA/YR DELTA/YR/YR UNITSDESCRIPTION
      HFAPGRD1 -1.721e-02 4.506e-03 2.744e-02 5.765e-01 K RT1-RT2: HRMA Forward Aperture Plate
      HFAPGRD2 3.644e-02 4.811e-03 -1.882e-02 4.936e-01 K RT1-RT4: HRMA Forward Aperture Plate

    • OBA Cone Gradients
      MSID MEAN RMS DELTA/YR DELTA/YR/YR UNITSDESCRIPTION
      HCONEGRD22 -6.909e-01 9.549e-02 6.082e-01 -9.143e+00 K RT41-RT48: OBA Cone Panel
      HCONEGRD28 -2.172e+00 6.371e-02 5.084e-01 2.206e-01 K RT44-RT50: OBA Cone Panel
      HCONEGRD39 2.253e+00 2.254e-02 -2.869e-01 4.929e-02 K RT50-RT51: OBA Cone Panel

    • Spacecraft Strut Gradients href="javascript:WindowOpener('hsstrtgrd4_avgAqtr.gif')">HSSTRTGRD4
      MSID MEAN RMS DELTA/YR DELTA/YR/YR UNITSDESCRIPTION
      3.454e+00 7.580e-01 9.846e-01 1.048e+02 K RT78-RT79: Spacecraft Struts

    • HRC Temperature
      MSID MEAN RMS DELTA/YR DELTA/YR/YR UNITSDESCRIPTION
      2CEAHVPT 2.981e+02 1.687e+00 1.090e+01 -1.210e+02 K CEA RADIATOR TEMPERATURE AT CENTER
      2CHTRPZT 2.944e+02 1.673e+00 1.136e+01 -1.596e+02 K CENTRAL ELECTRONICS BOX TEMP
      2CONDMXT 2.902e+02 1.633e+00 1.096e+01 -1.445e+02 K CONDUIT -X FACE TEMPERATURE

    • PCAD Drift Rate
      MSID MEAN RMS DELTA/YR DELTA/YR/YR UNITSDESCRIPTION
      AOGBIAS1 -4.561e-06 4.547e-08 -6.338e-07 6.927e-07 RADPS GYRO DRIFT RATE ESTIMATE (ROLL)
      AOGBIAS2 -9.990e-06 2.228e-08 -3.028e-07 -3.457e-07 RADPS GYRO DRIFT RATE ESTIMATE (PITCH)
      AOGBIAS3 -5.763e-06 2.631e-08 -3.652e-07 4.087e-07 RADPS GYRO DRIFT RATE ESTIMATE (YAW)

    • Battery Usage
      MSID MEAN RMS DELTA/YR DELTA/YR/YR UNITSDESCRIPTION
      EB1CI 3.424e-01 9.478e-03 8.509e-02 2.786e-01 AMP BATT 1 CHARGE CURRENT
      EB2CI 3.521e-01 9.522e-03 7.713e-02 -4.668e-02 AMP BATT 2 CHARGE CURRENT
      EB3CI 3.409e-01 1.058e-02 8.941e-02 7.686e-02 AMP BATT 3 CHARGE CURRENT

    • Spacecraft Electronics
      MSID MEAN RMS DELTA/YR DELTA/YR/YR UNITSDESCRIPTION
      ELBV 2.979e+01 2.114e-01 -2.329e+00 -2.315e-01 V LOAD BUS VOLTAGE

    TOP

  • Spacecraft Motions
    •

      Reaction Wheel Rotations
